Symbologies
209

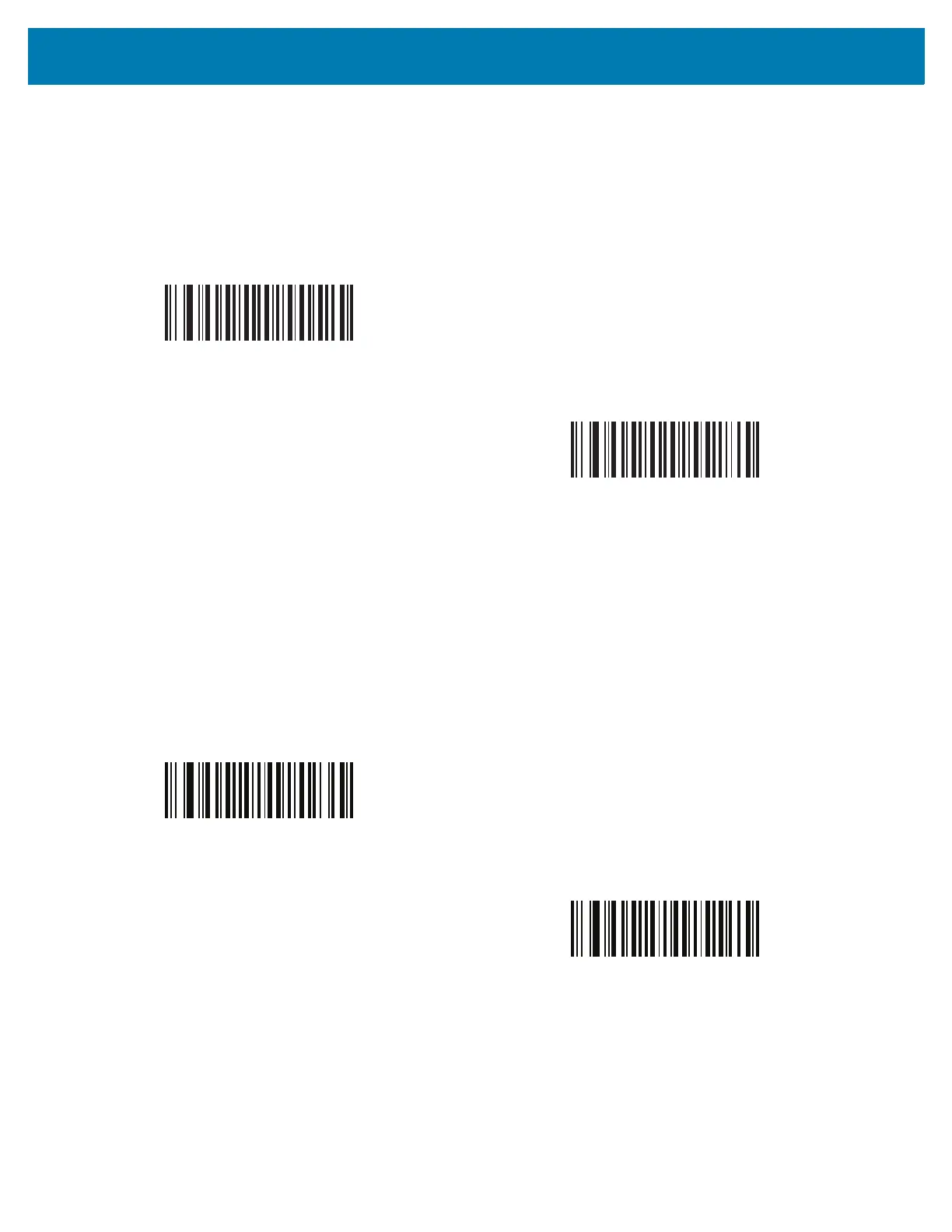

Data Matrix
Parameter # 292
SSI # F0h, 24h
Scan one of the following barcodes
to en
able or disable Data Ma
trix.
GS1 Data Matrix
Parameter # 1336
SSI # F8h 05h 38h
Scan one of the following barcodes
to enable or disable GS1 Dat
a Matr
ix.
*
Enable Data Ma
trix
(1)
Disable Data
Matrix
(0)
Enable GS1 Data Matrix
(1)
*
Disable GS1
Data Matrix
(0)
