SSI Interface

268

Parameter Event

Parameter # 259

SSI # F0h 03h

Scan one of the following barcodes to enable or disable Parameter Event:

• Enable Parameter Event - The scanner generates a message to the host when one of the events

specified in Table 18 on page 266 occurs.

• Disable Parameter Event - No notification is sent.

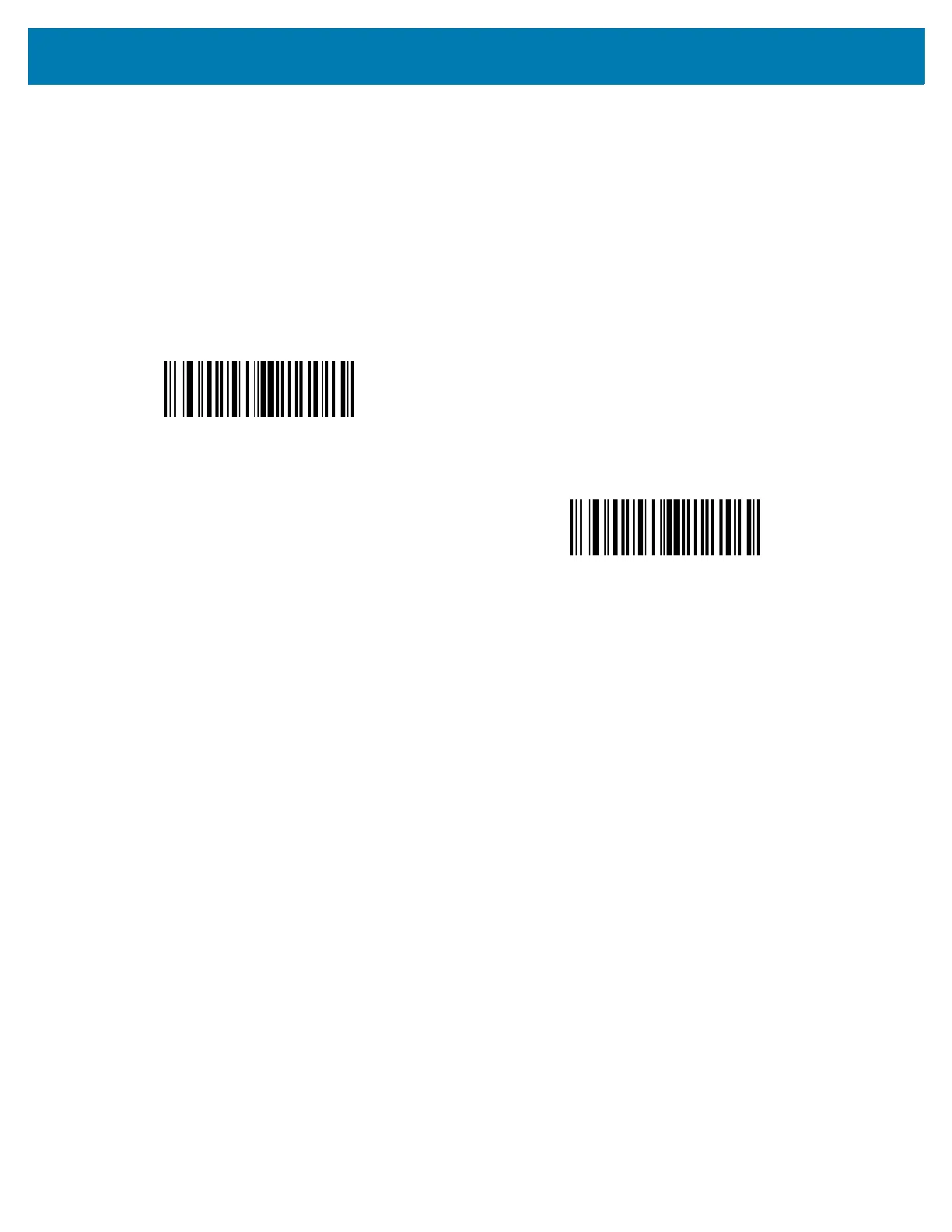

Enable Parameter Event

(1)

*Disable Parameter Event

(0)

DS9908 Hands-Free Imaging Scanner Product Reference Guide1
