Symbologies

207

2D Symbologies

PDF417

Parameter # 15

SSI # 0Fh

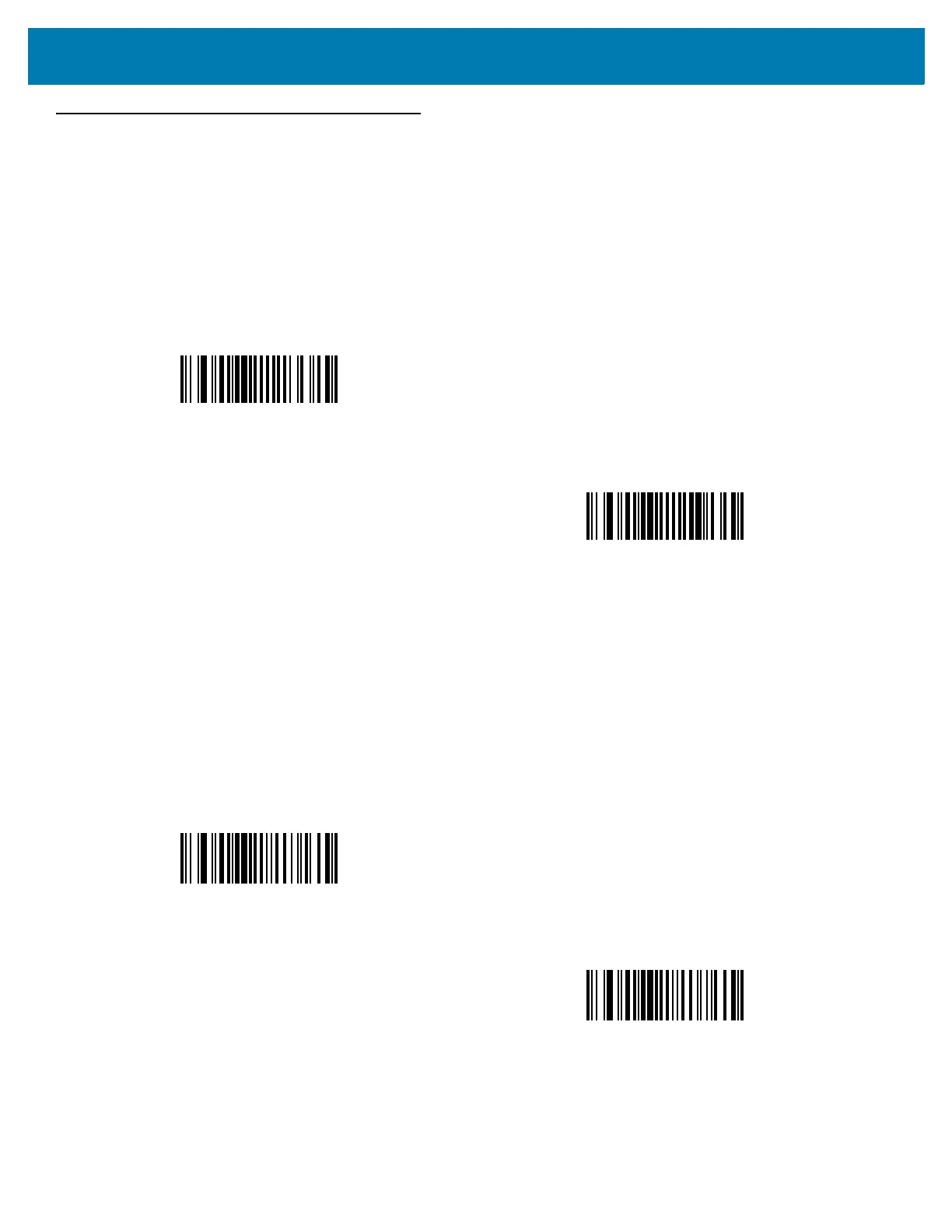

Scan one of the following barcodes to enable or disable PDF417.

MicroPDF417

Parameter # 227

SSI # E3h

Scan one of the following barcodes to enable or disable MicroPDF417.

*Enable PDF417

(1)

Disable PDF417

(0)

Enable MicroPDF417

(1)

*Disable MicroPDF417

(0)
