Zebra DS9908

To Next Page

To Previous Page

Symbologies

221

UK Postal

Parameter # 91

SSI # 5Bh

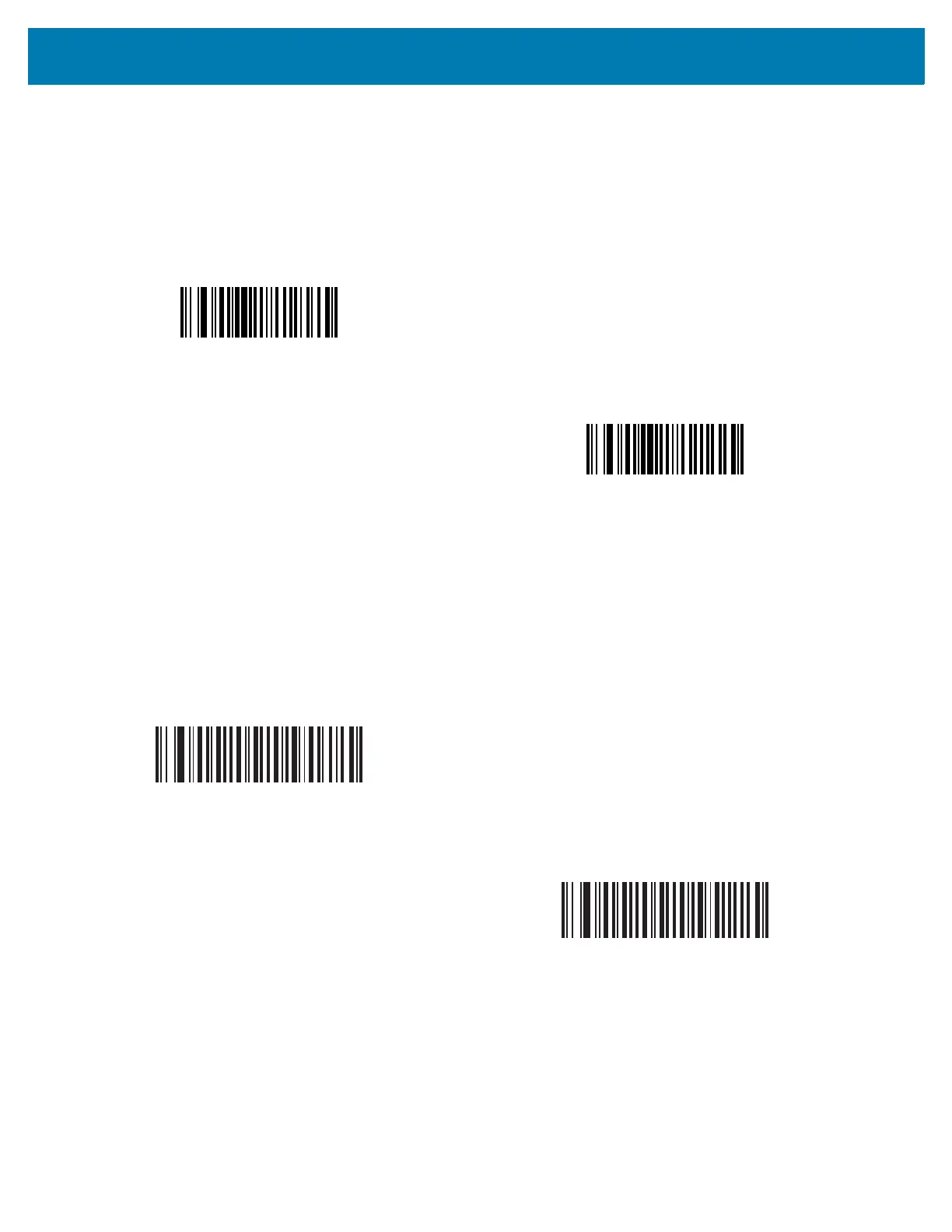

Scan one of the following barcodes to enable or disable UK Postal.

Transmit UK Postal Check Digit

Parameter # 96

SSI # 60h

Scan one of the following barcodes to select whether to transmit UK Postal data with or without the check digit.

Enable UK Postal

(1)

*Disable UK Postal

(0)

*Transmit UK Postal

Check Digit

(1)

Do Not Transmit UK Postal Check Digit

(0)
