Zebra DS9908

To Next Page

To Previous Page

Symbologies

210

Data Matrix Inverse

Parameter # 588

SSI # F1h 4Ch

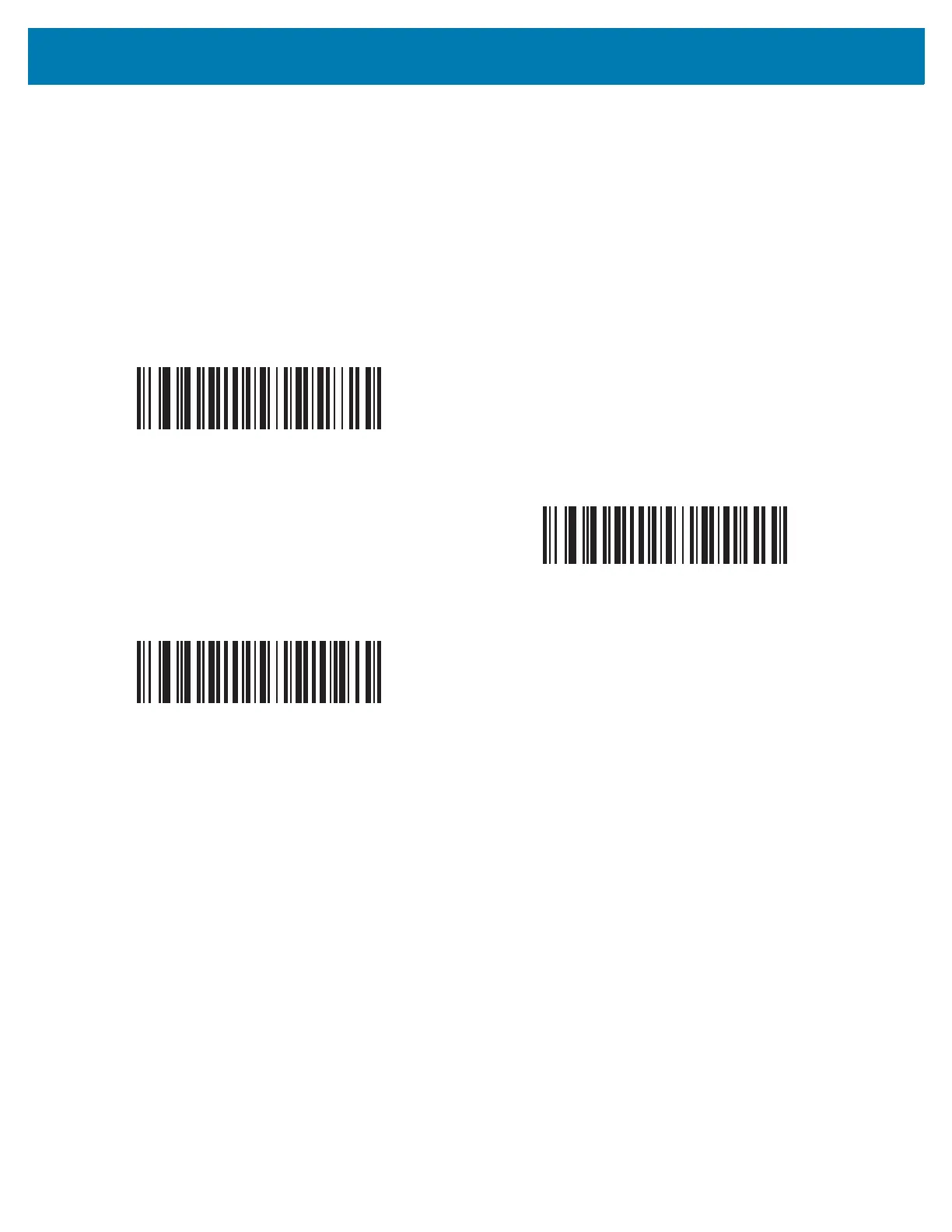

Scan one of the following barcodes to select the Data Matrix inverse decoder setting:

• Regular Only - The scanner decodes regular Data Matrix barcodes only.

• Inverse Only - The scanner decodes inverse Data Matrix barcodes only.

• Inverse Autodetect - The scanner decodes both regular and inverse Data Matrix barcodes.

Regular Only

(0)

Inverse Only

(1)

*Inverse Autodetect

(2)
