Maintenance, Troubleshooting, and Technical Specifications
55
Scanner Signal Descriptions

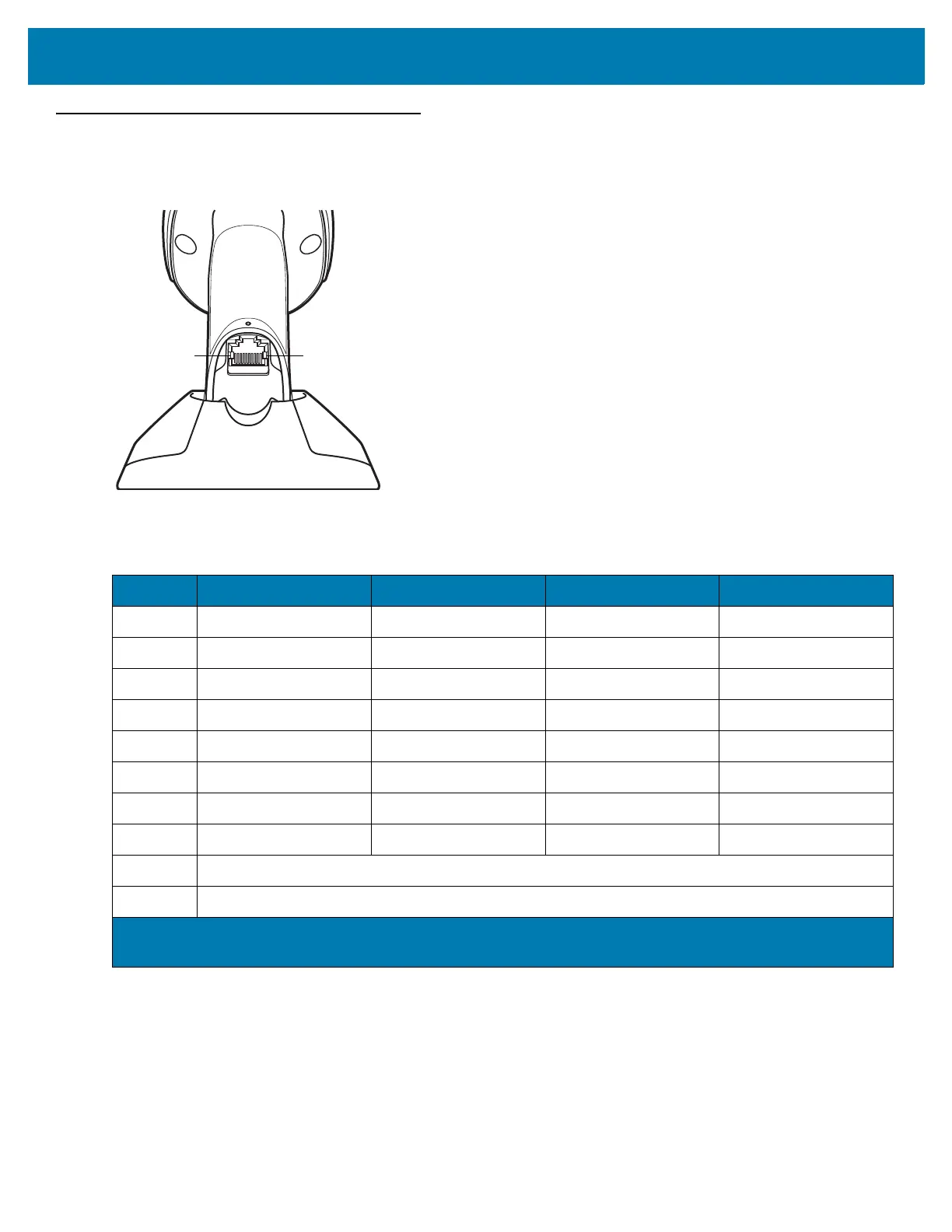

Figure 14 Scanner Cable Pinouts
The signal descriptions in Table 7 apply to the connectors on the DS9908 scanner and are for reference only.
Table 7 DS9908 Scanner Signal Pin-outs
Pin IBM RS-232 Keyboard Wedge USB
1 Cable ID Cable ID Cable ID Cable ID
2 Power (+5V) Power (+5V) Power (+5V) Power (+5V)
3 Ground Ground Ground Ground
4 IBM_OUT TxD KeyClock Reserved
5 IBM_IN RxD TermData D +
6 IBM_T/R RTS KeyData Reserved
7 Reserved CTS TermClock D -
8 Reserved Reserved Reserved Reserved
9 See note
10 See note
Note: EAS configurations use pins 9 and 10 for an EAS antenna. For other configurations pins 9 and 10 are
open.
Pin 10
Pin 1
