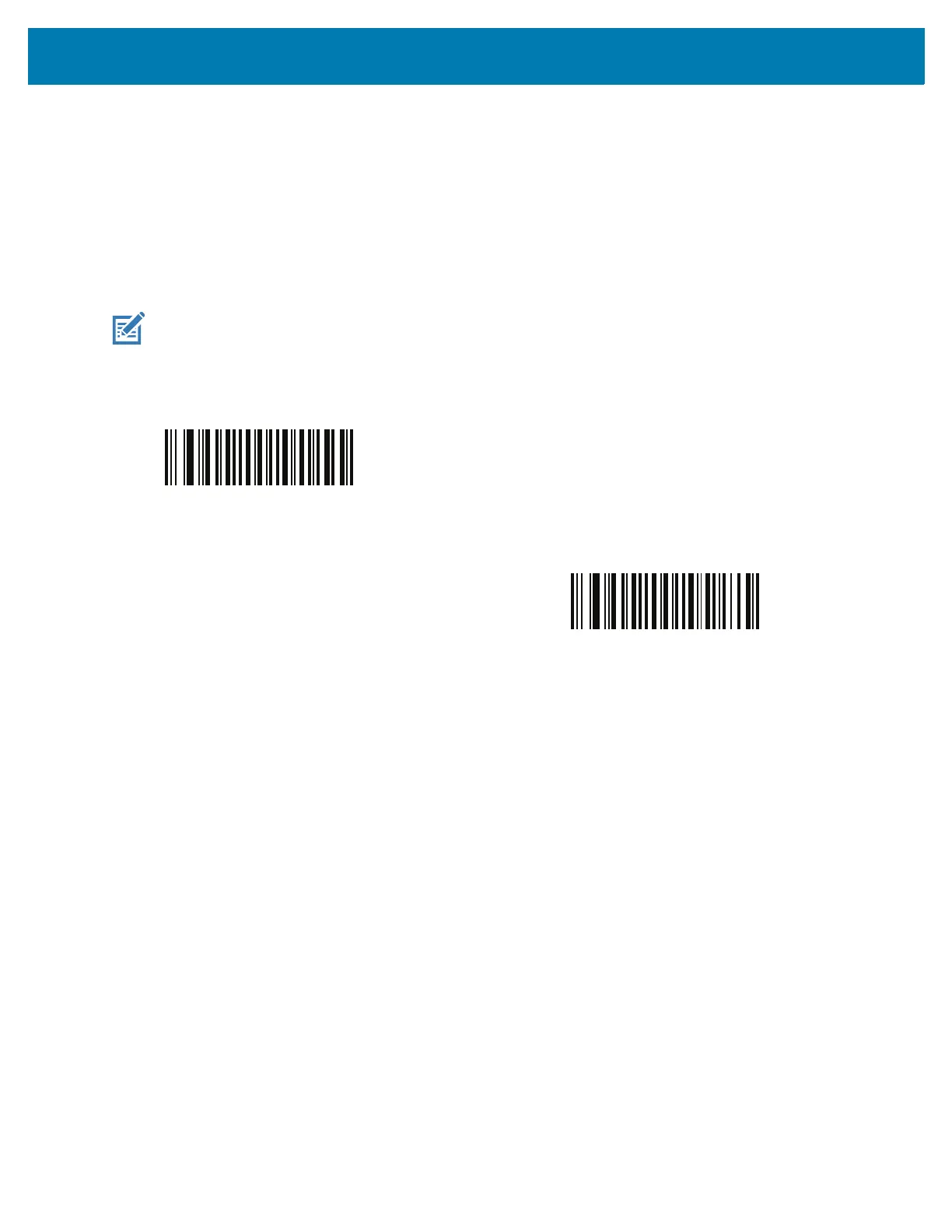

Intelligent Document Capture (Hand-held Mode Only)

351

IDC Captured Image Sharpen

Parameter Name: Sig_SHARPEN

Parameter # 658

SSI # F1h 92h

Enable this to enhance the sharpness of the image.

NOTE: This parameter is also used for Signature Capture.

*Enable Captured Image Sharpen

(1)

Disable Captured Image Sharpen

(0)
