Zebra DS9908

To Next Page

To Previous Page

Symbologies

132

Bookland EAN

Parameter # 83

SSI # 53h

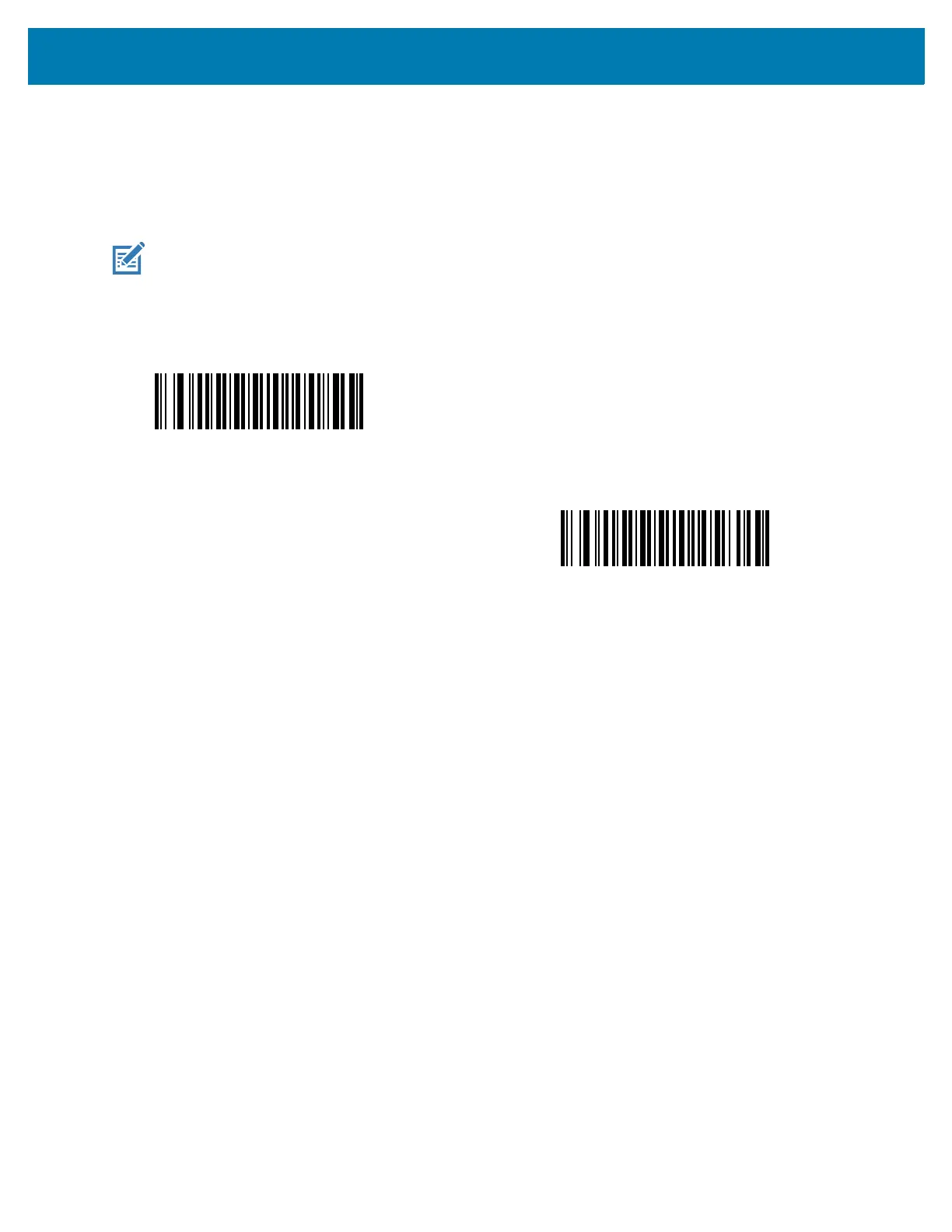

Scan one of the following barcodes to enable or disable Bookland EAN.

NOTE: If you enable Bookland EAN, select a Bookland ISBN Format. Also set Decode UPC/EAN/JAN

Supplementals on page 135 to either Decode UPC/EAN/JAN with Supplementals Only,

Autodiscriminate UPC/EAN/JAN With Supplementals, or Enable 978/979 Supplemental Mode.

Enable Bookland EAN

(1)

*Disable Bookland EAN

(0)
