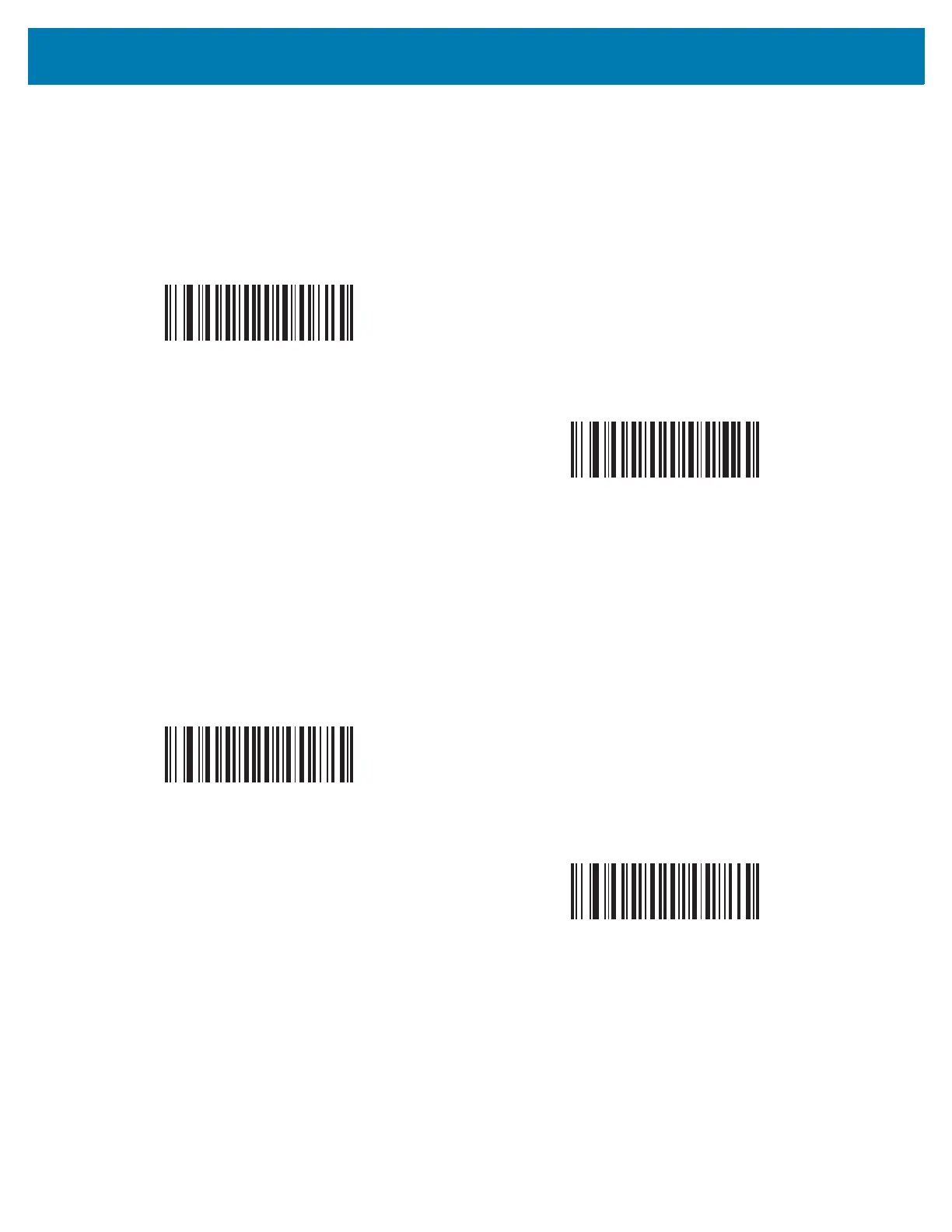

Symbologies
222
Japan Postal
Parameter # 290
SSI # F0h, 22h
Scan one of the following barcodes
to en
able or disable Japan P
ostal.
Australia Post
Parameter # 291
SSI # F0h, 23h
Scan one of the following barcodes
to enable or disable Austral
ia Post.
Enable Japan Postal
(1)
*
Disable J
apan Post
al
(0)
Enable Australia Post
(1)
*
Disable Au
stralia Post
(0)
221
223
