Keyboard Wedge Interface
295
Connecting a Keyboard Wedge Interface

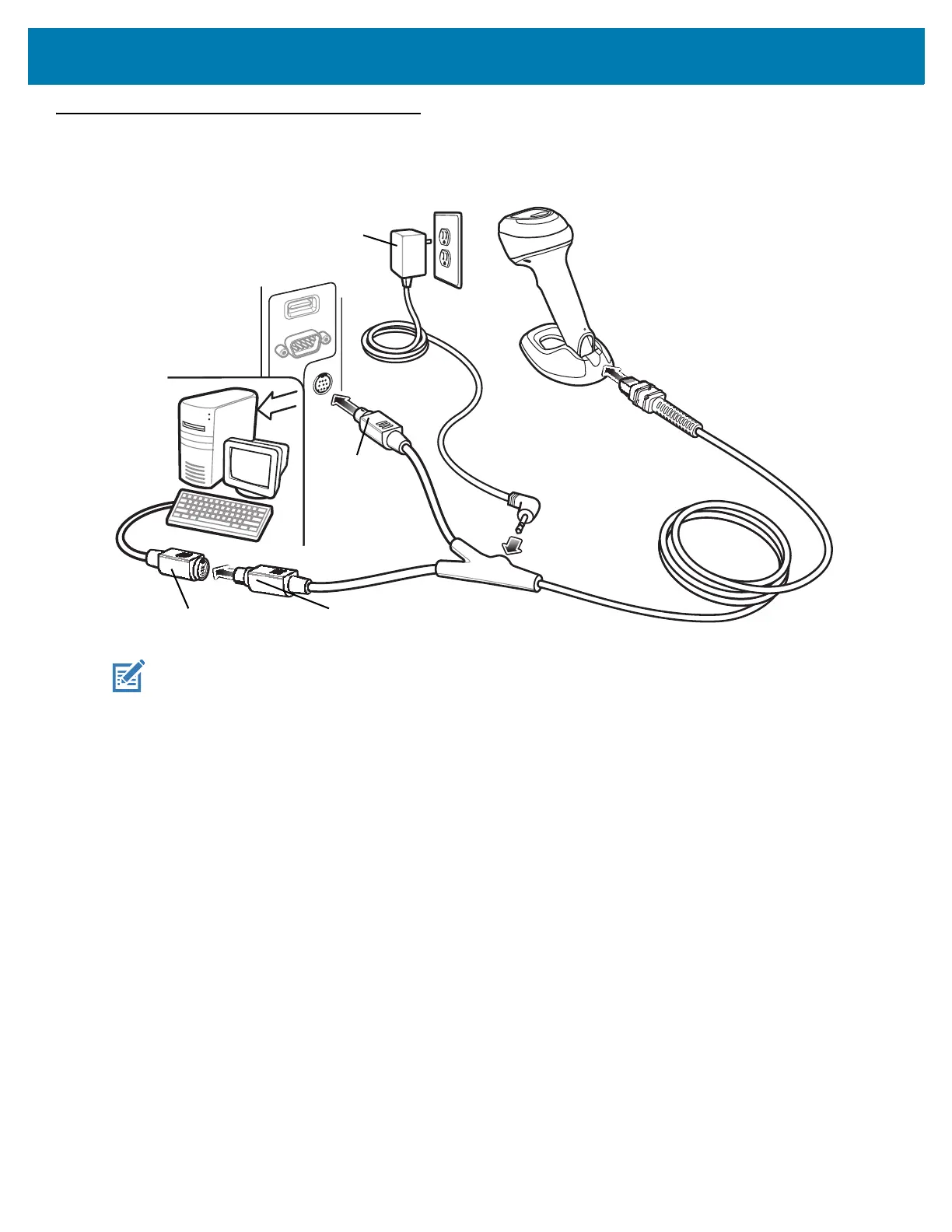

Figure 18 Keyboard Wedge Connection
1. Turn off the host and unplug the keyboard connector.
2. Attach the modular connector of the Y-cable to the cable interface port on the scanner. See Inserting the
Interface Cable on page 31.
3. Connect the round male DIN host connector of the Y-cable to the keyboard port on the host device.
4. Connect the round female DIN keyboard connector of the Y-cable to the keyboard connector.
5. If required, attach the optional power supply to the connector in the middle of the Y-cable.
6. Ensure that all connections are secure.
7. Turn on the host system.
8. The scanner automatically detects the host interface type and uses the default setting. If the default (*) does
not meet your requirements, scan IBM PC/AT & IBM PC Compatibles on page 297.
9. To modify other parameter options, scan the appropriate barcodes in this guide.
If problems occur with the system, see Troubleshooting on page 48.
Male DIN
connector
Male DIN connector
Keyboard connector
Power supply
(if required)
NOTE: Interface cables vary depending on configuration. The connectors can be different than those illustrated
in Figure 18, but the steps to connect the scanner are the same.
