SSI Interface
265
Interpacket Delay
Parameter # 335
SSI # F0h 4Fh

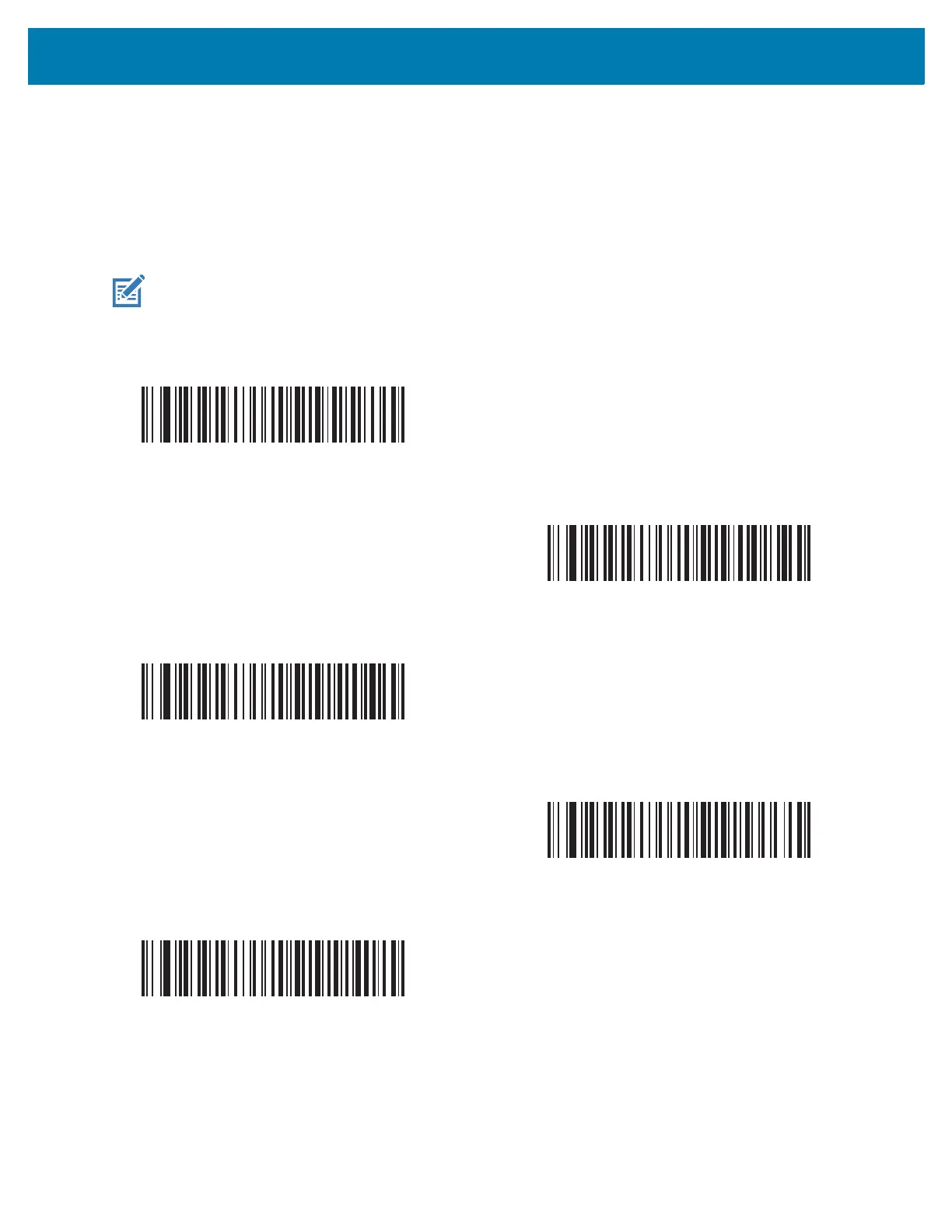

Scan one of the following barcodes
to specify the interpacket delay if you selected
Multipacket Option 3
.
NOTE
:
Other values are avail
able vi
a SSI commands.
*
Minimum - 0 msec
(0)
Low - 2
5 msec
(25)
Medium - 50 msec
(50)
High - 75 msec
(75)
Maximum - 99 msec
(99)
