Zebra DS9908 Product Reference Guide

Custom Tone
406

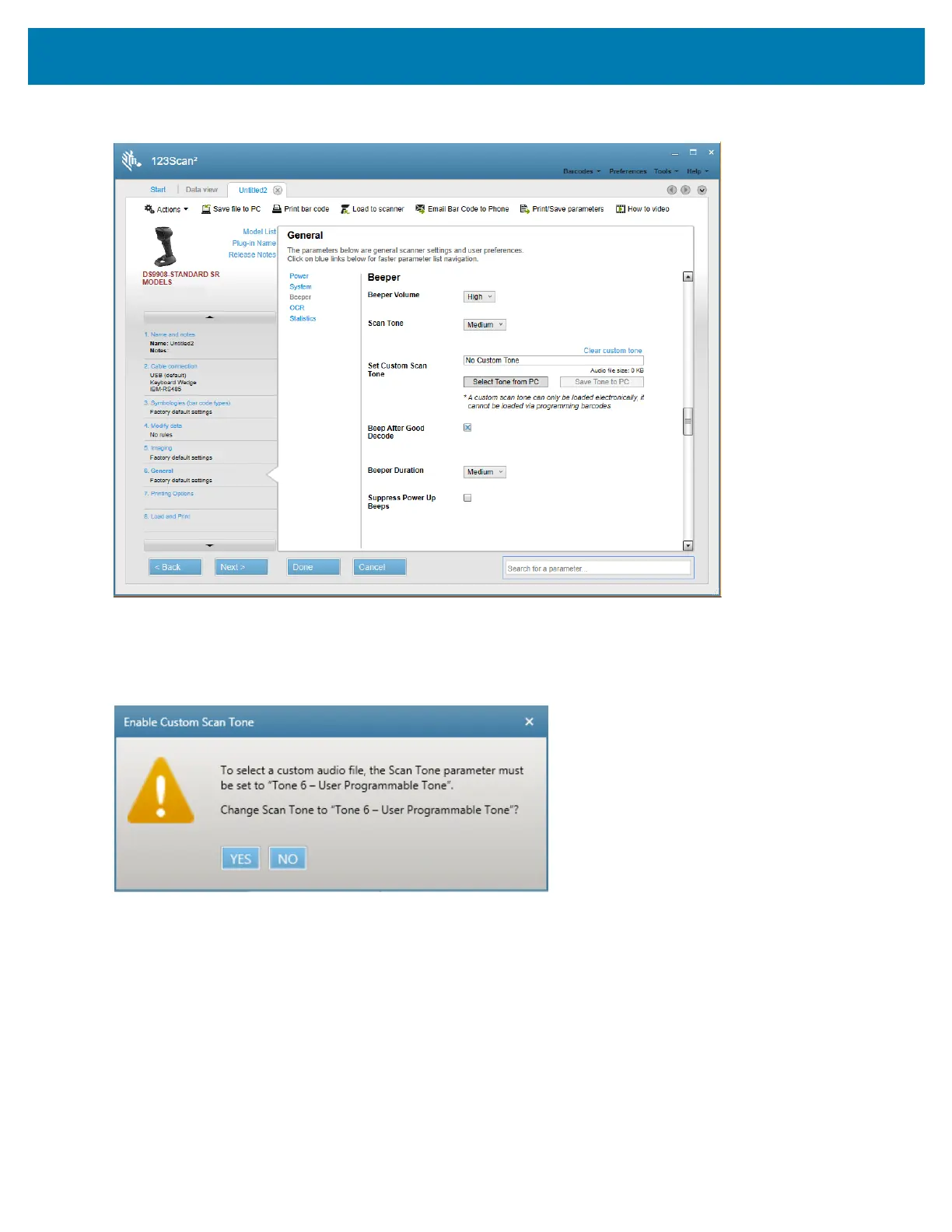

Figure 23 General Parameters Section
5. Select General > Beeper.
6. Choose the Select Tone from PC button to navigate to and select the custom tone.
Figure 24 Enable Custom Scan Tone Window
7. Select YES on the pop-up window to set the Scan Tone parameter to the User Programmable/Tone 6 option. The
Scan Tone field indicates Tone 6 - User Programmable, and the Set Custom Scan Tone field now reflects the
selected WAV file name.

Zebra DS9908 Specifications

General

Sealing	IP52
Scan Technology	Array Imager
Scan Rate	Up to 240 in./610 cm per second
Humidity	5% to 95% RH, non-condensing
Decode Capability	1D, 2D
Connectivity	USB, RS-232, Keyboard Wedge
Image Sensor	1280 x 800
Drop Specification	Multiple 5 ft./1.5 m drops to concrete
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Light Source	LED
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
