NoteAction
xx1300000734

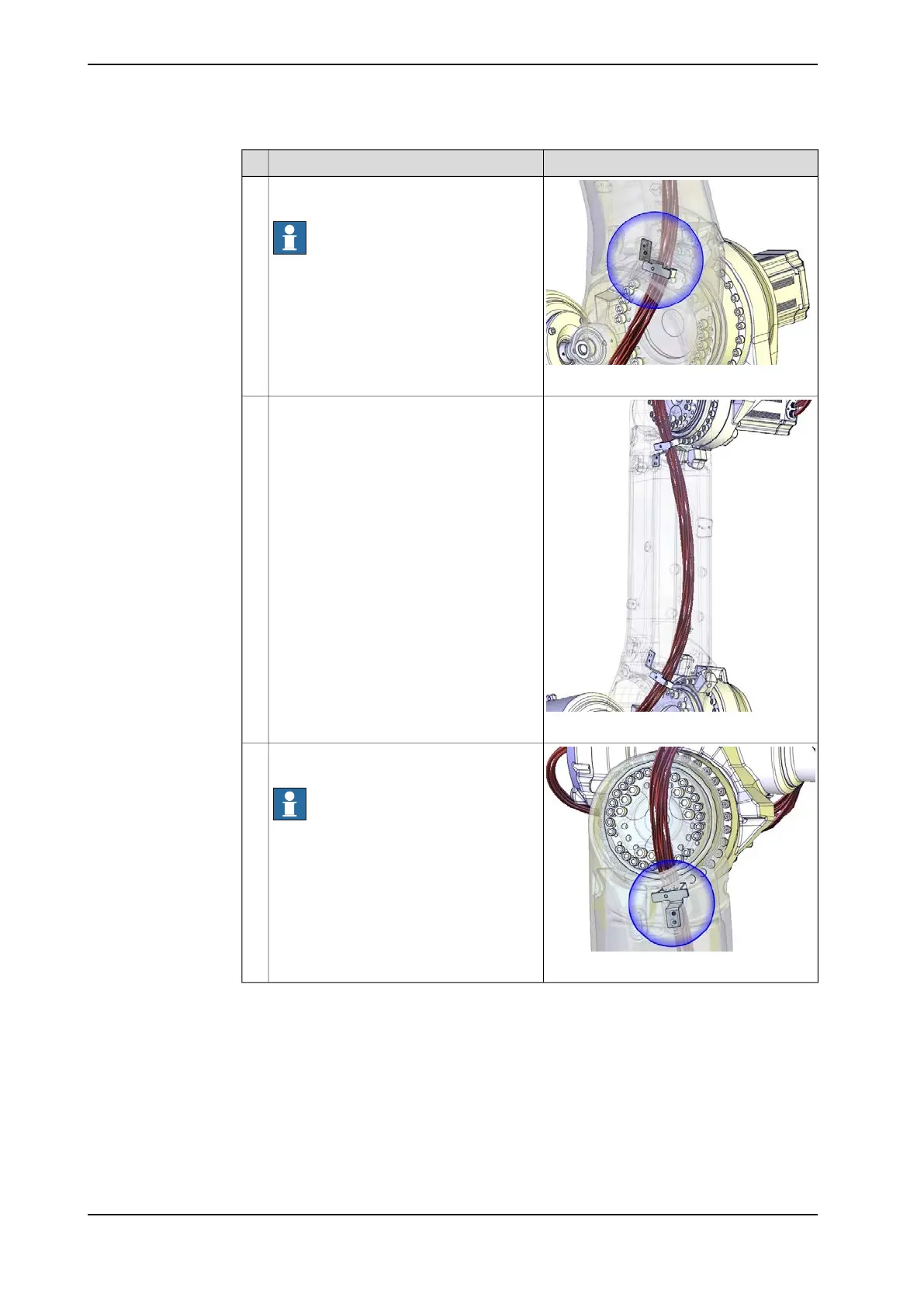

Refit the axis-2 lower arm metal clamp
located on the inside of the lower arm.
Note
The screws are reached from the outside
of the lower arm.
4
xx1300000595
Before fitting the remaining axis-3 lower
arm cable bracket inside the lower arm,
check that it will stay twisted a little
between the metal clamps, after fitting, as
shown in the figure. Do not change the po-
sition of the brackets!
5
xx1300000558
Refit the axis-3 lower arm metal clamp
located on the inside of the lower arm.
Note
The screws are reached from the outside
of the lower arm.
6
Continues on next page
322 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.5.4 Replacing the lower arm
Continued
