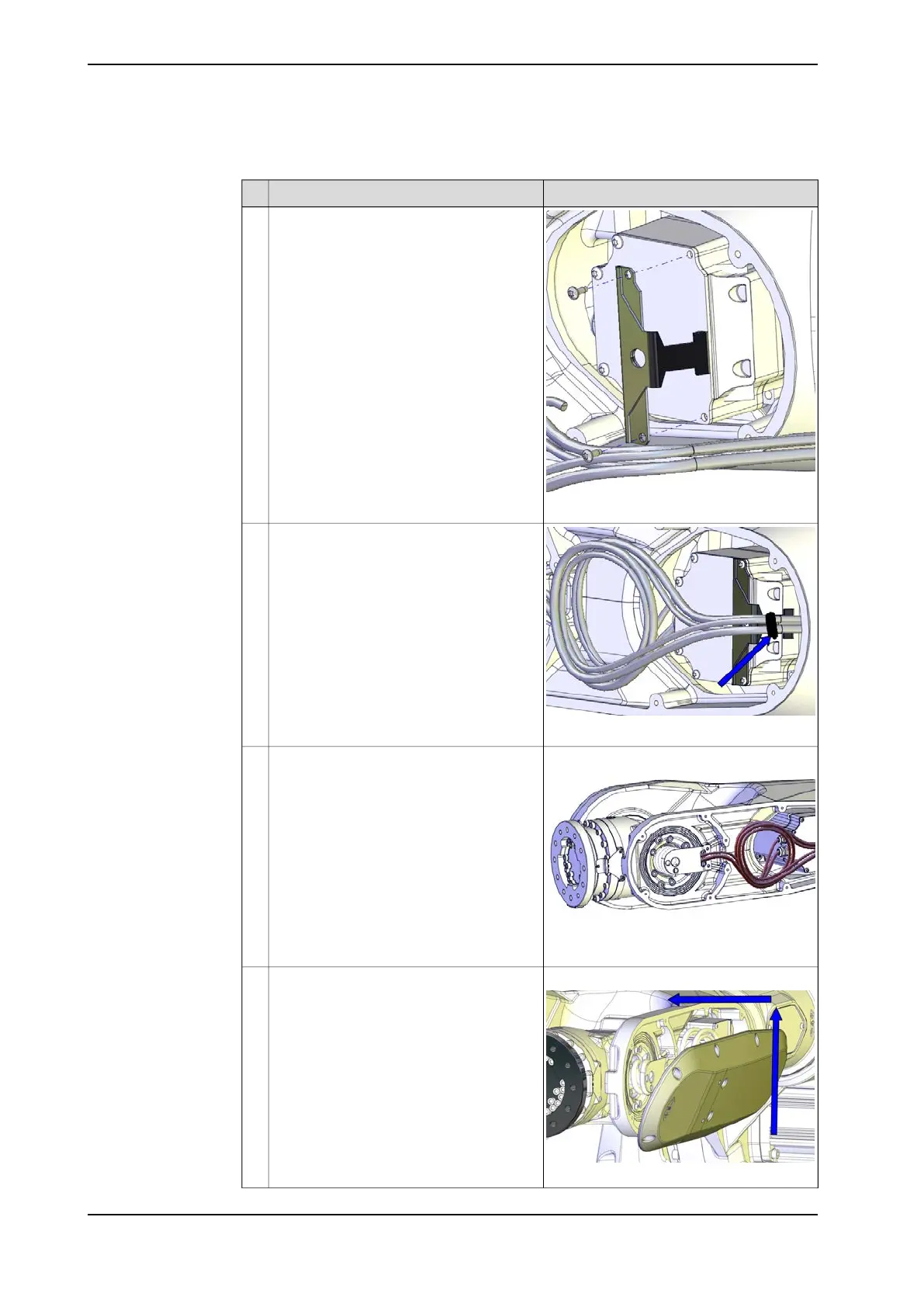

Concluded refitting of the cable harness
NoteAction
xx1300000490
Refit the heat protection plate.1
xx1300000489
Secure the cable harness to the heat pro-
tection plate with two cable straps.
2
xx1300000596
Make sure that the cable harness will be
placed in a way that it will not be damaged
when the wrist cover is fitted.
3
Tightening torque: 10 Nm.
xx1300000772
Use caution in order not to damage the
cable harness when the wrist cover is refit-
ted, by following this method:
1 Hold the cover in an angle. See fig-
ure!
2 Catch any part of the cable harness
hanging down.
3 Lift the cover, still held in an angle.
4 Move the upper part of the cover into
position.
5 Secure the cover with its attachment
screws.
4
Continues on next page
