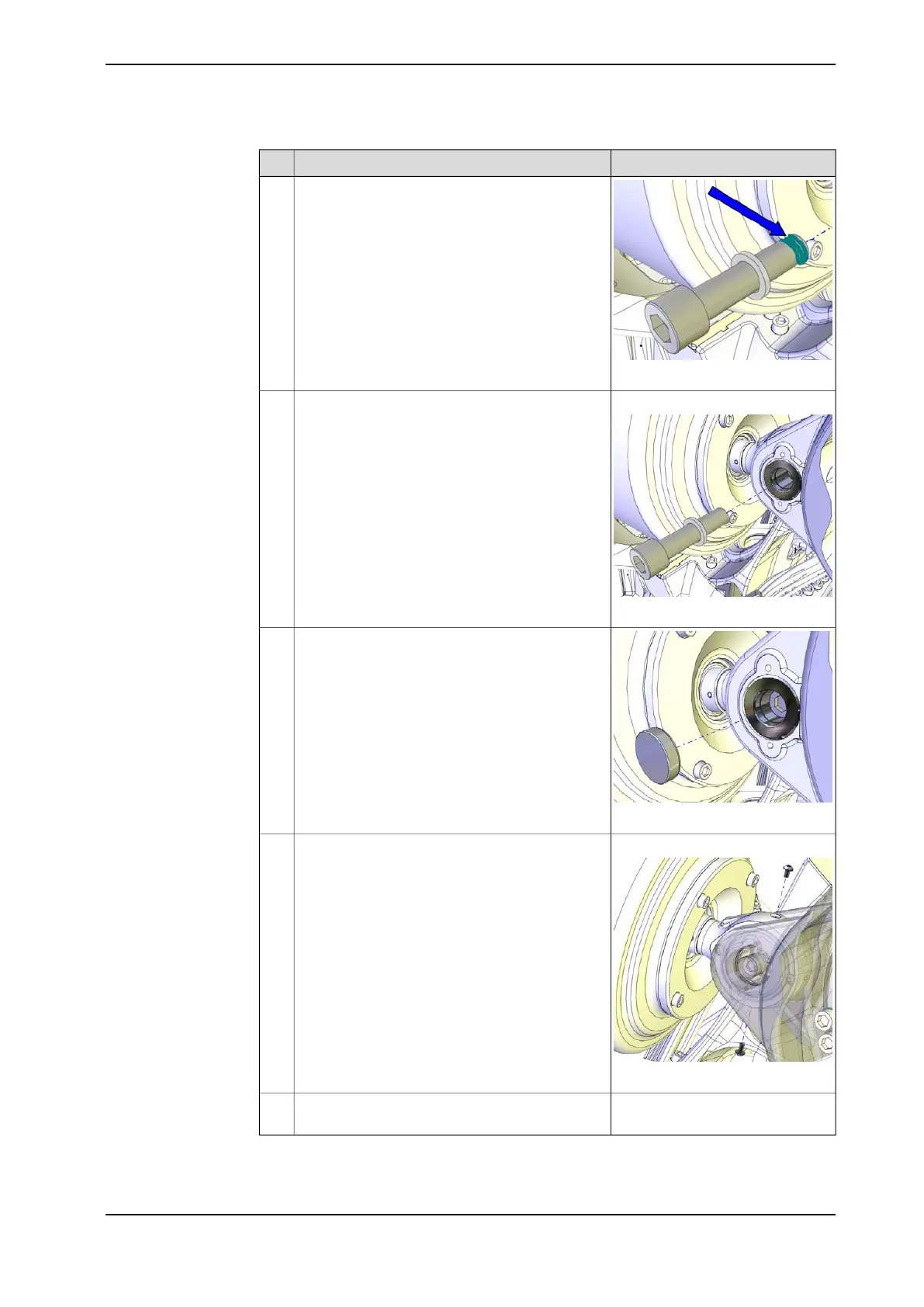

NoteAction
xx1300000782
Apply locking liquid (Loctite 2701) on the threads
of the screw, first entering the threads in the
frame.
8
Tightening torque: 200 Nm
xx1200001279
Secure the shaft with screw and washer.9
xx1200001278
Fit the VK-cover.10
Grease: 3HAC042534-001
xx1300000783
Unscrew both screws in link ear and fill the bear-
ing with grease from the upper hole until the
grease appears in the lower hole.
11
Refit the two screws and wipe clean from residual
grease.
12
Continues on next page
