ECM-2
Overview
The element controller module (ECM-2) is the shelf controller module, supporting the
internal and external communication of the SH12 and SH4R shelves. All modules are
monitored and controlled by the ECM-2. Each module is connected to internal shelf
communications links on the backplane which enables data exchange with the ECM-2s.
The ECM-2s are installed in the two half-size slots of the SH12 and SH4R shelves.

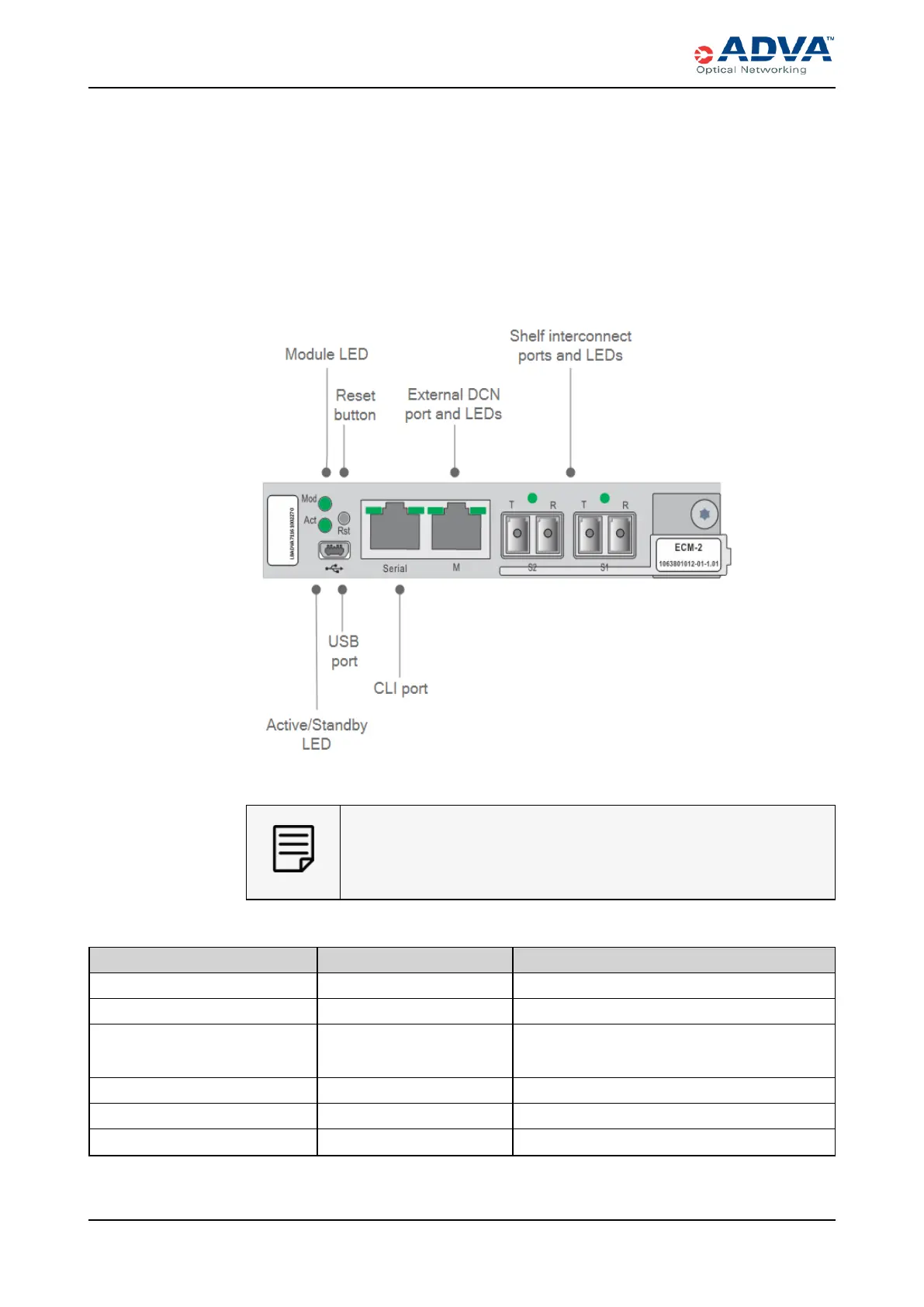

Figure 14: ECM-2 Faceplate
The shelf interconnect ports are supported in a future release.
Parameter Value Notes
Sales item number 1063801012-01
Release introduced Release 1.1
Compatible shelves
l SH12
l SH4R
Width 119.8 mm (4.7 in.)
Height 21.5 mm (0.9 in.)
Weight 0.4 kg (0.8 lbs)
Table 12: General Information — ECM-2
48 FSP3000 C Hardware Guide - R1.1 - Issue:A (12/09/2016)
