• The Spring-Arm should move smoothly without excessive force between the upper
and the lower limits of its vertical travel.
• With the Spring-Arm at the top of its travel, measure from the floor to the top of the
Spring-Arm. The measurement should be between 65 and 66 inches (165–168 cm).
• With the Spring-Arm at the bottom of its travel, measure from the floor to the bottom
of the Spring-Arm. The measurement should be between 36 and 37 inches (91–94
cm).
If the Spring-Arm does not move smoothly or if the travel measurements cannot be achieved,
contact Capintec’s only Authorized Service Center for information on replacement items,
instructions or on-site service.

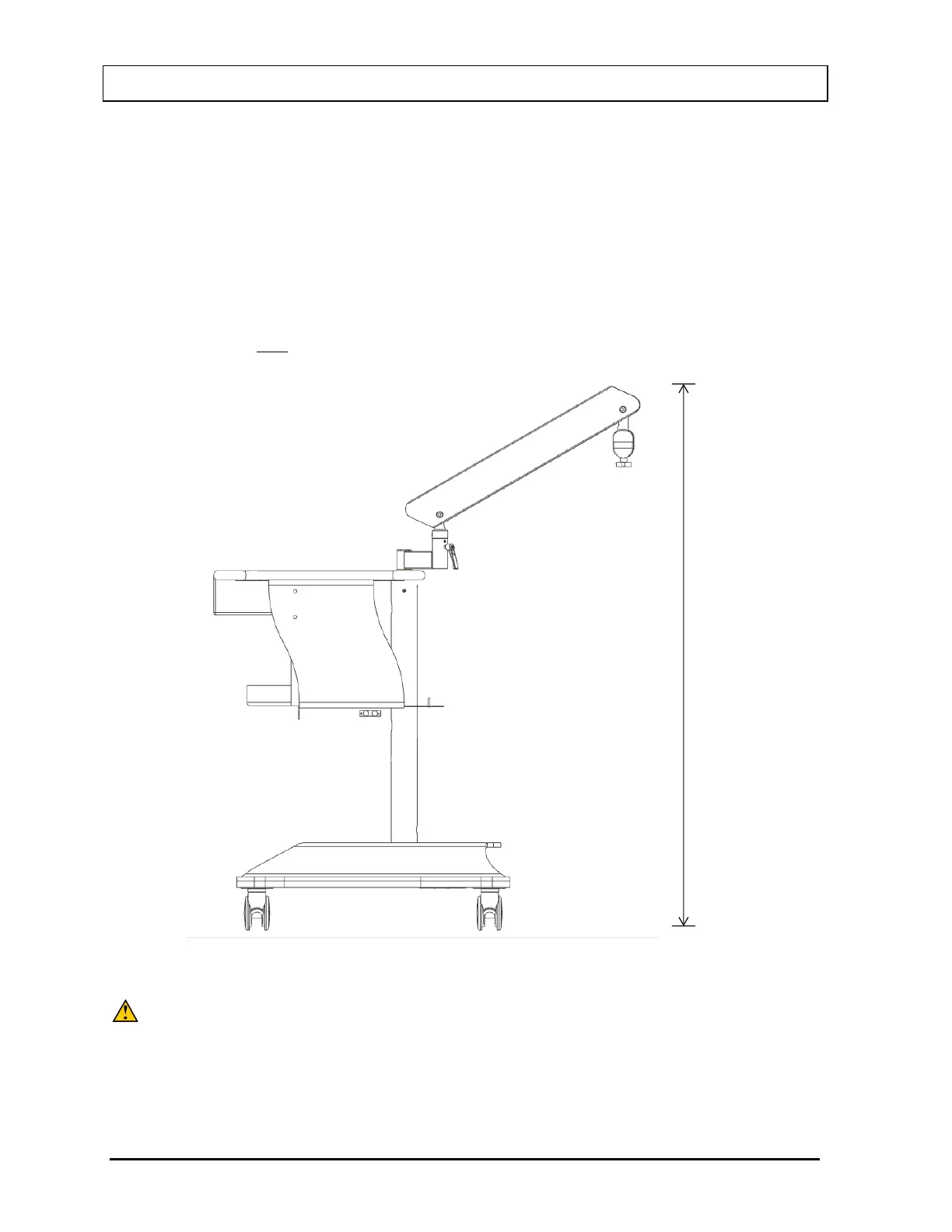

Figure 16-4
WARNING: FAILURE TO FOLLOW THE INSPECTION REQUIREMENTS FOR THE
COLLIMATOR BLOCK AND SPRING-ARM COULD RESULT IN
SERIOUS INJURY OR PRODUCT MALFUNCTION.
