Daewoo MATIZ - Page 420

To Next Page

To Previous Page

1F–322 ENGINE CONTROLS

DAEWOO M-150 BL2

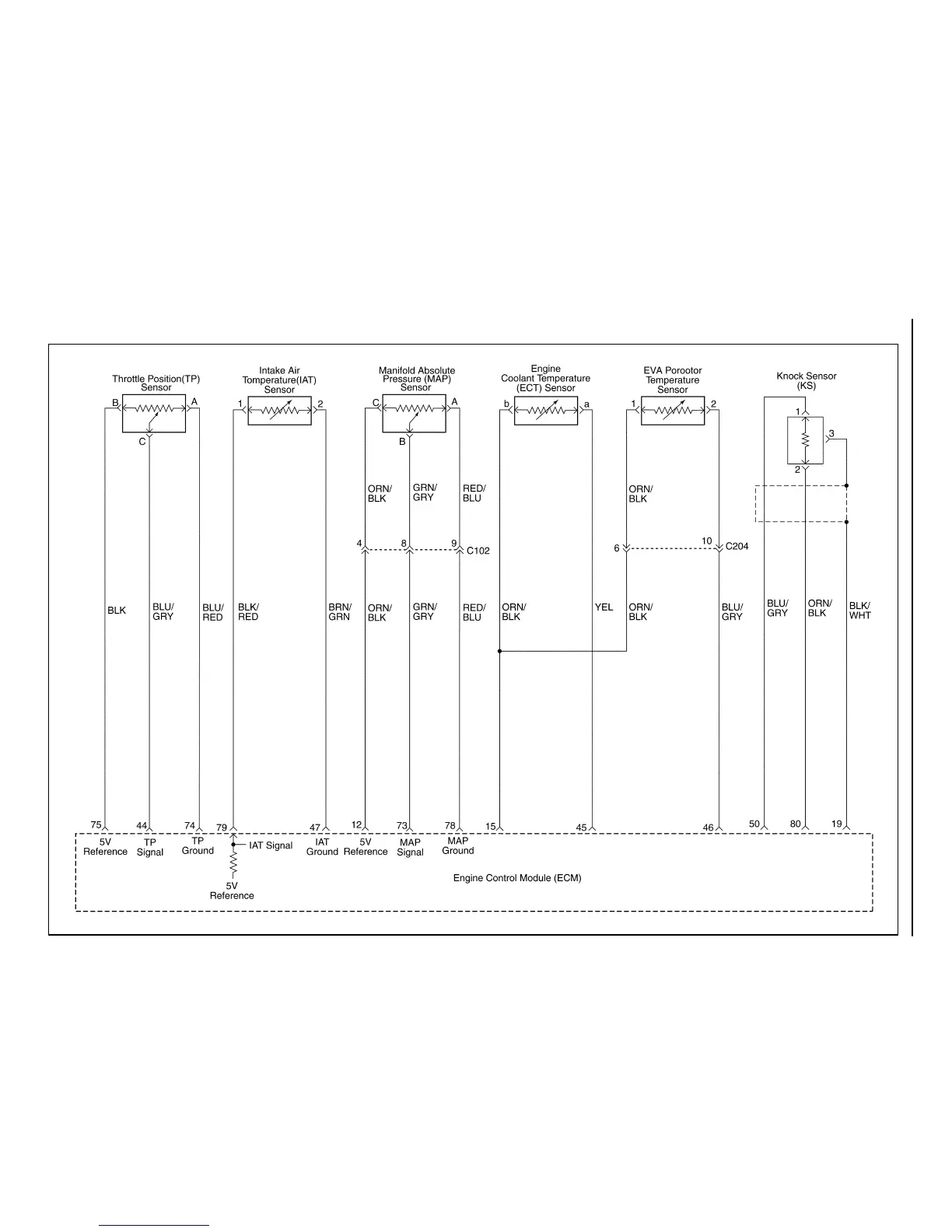

ECM WIRING DIAGRAM (SIRIUS D3 – 3 OF 5)

MAAF630
