2C –18 FRONT SUSPENSION
DAEWOO M-150 BL2
D106B707

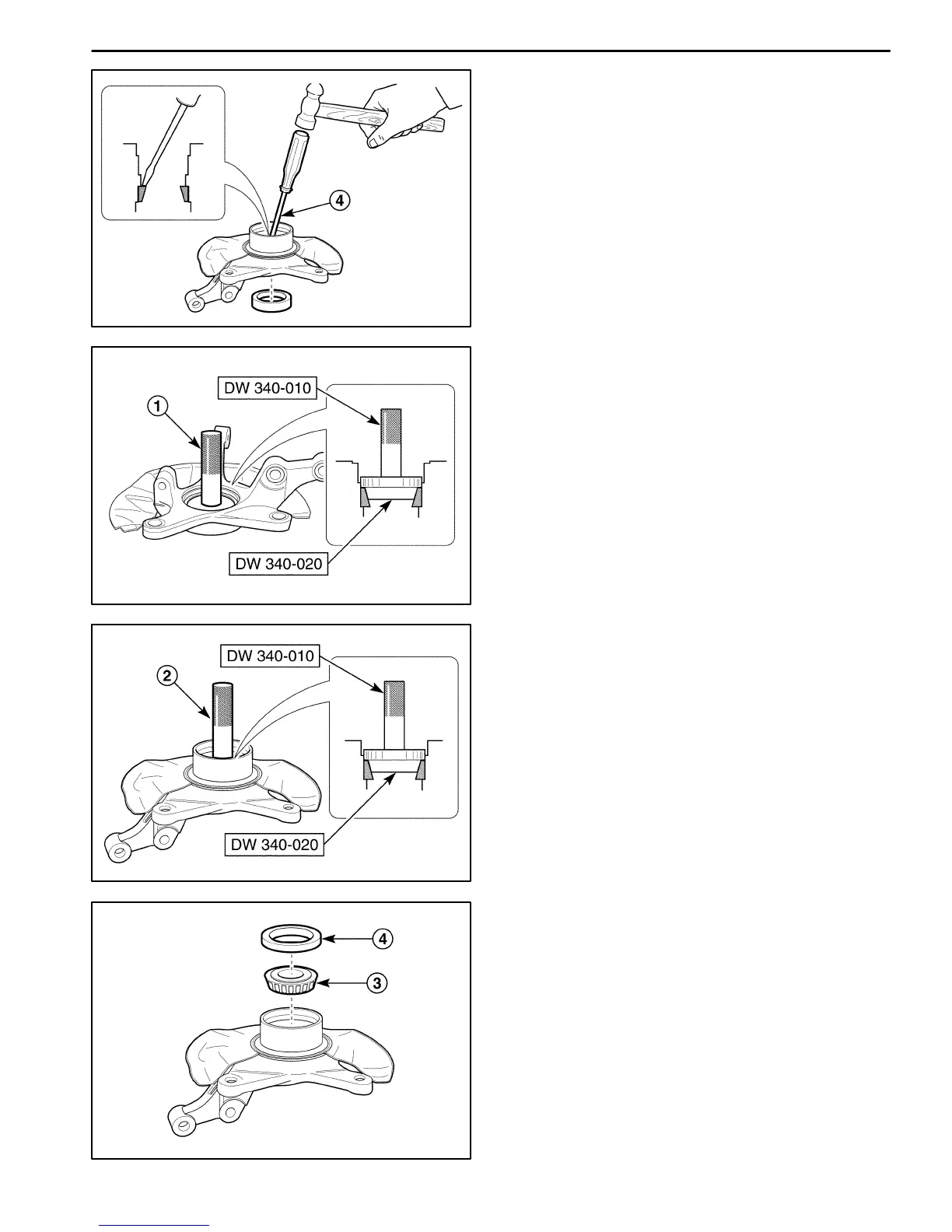

D Remove the inner bearing race (4).
D106B708
Assembly Procedure
1. Assemble the steering knuckle assembly.
D Assemble the inner bearing race using the front
wheel hub remover DW 340–010 and the front
bearing race installer DW 340–020 (1).
D106B709
D Assemble the outer bearing race using the front
wheel hub remover DW 340–010 and the front
wheel bearing race installer DW 340–020 (2).
D106B710
D Assemble the outer wheel bearing (3).
D Assemble the outer wheel bearing oil seal (4).
