FRONT SUSPENSION 2C–19
DAEWOO M-150 BL2
D106B711

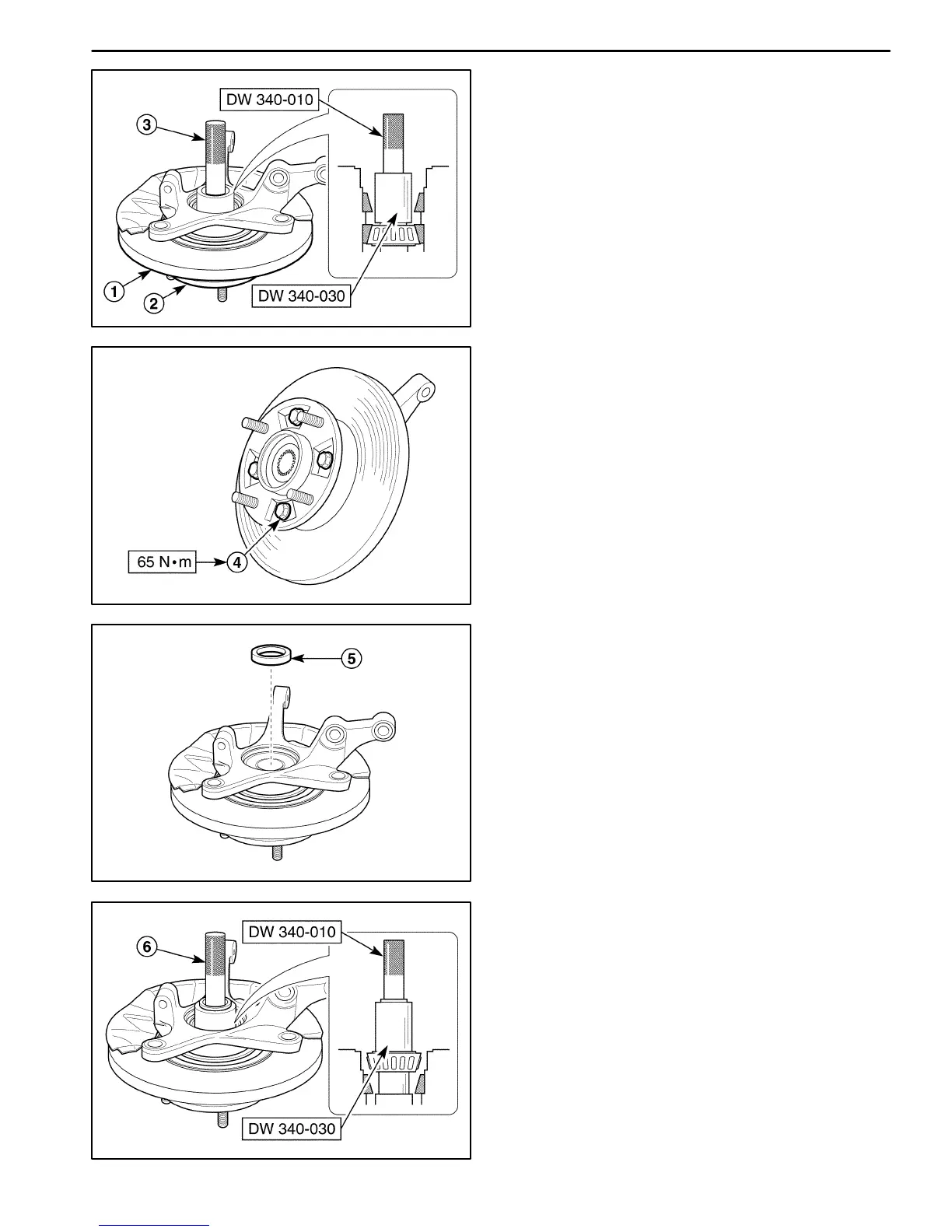

2. Install the wheel hub to steering knuckle assembly.
D Install the brake rotor (1).
D Install the wheel hub to the steering knuckle as-
sembly temporary (2).
D Press the outer wheel bearing into the wheel hub
using the front wheel hub remover DW 340–010
and the front wheel bearing installer DW 340–030
(3).
D16B712A
D Tighten the bolts (4).
Tighten
Tighten the bolt to 65 NSm (48 lb-ft).
D106B713
D Install the bearing spacer (5).
D106B714
D Press the inner wheel bearing into the wheel hub
using the front wheel hub remover DW 340–010
and the front wheel bearing installer DW 340–030
(6).
