4C –6 POWER BOOSTER
DAEWOO M-150 BL2
D24C001
POWER BOOSTER ASSEMBLY
(RIGHT–HAND DRIVE)
Removal Procedure
1. Remove the master cylinder assembly. Refer to Sec-
tion 4B, Master Cylinder.
2. Disconnect the vacuum hose from the power booster.
3. Remove the instrument panel assembly. Refer to
Section 9E, Instrument/Driver Information.
4. Remove the evaporator unit mounting screws and
take off the evaporator unit a little. Refer to Section
7B, Manual Control Heating, Ventilation, and Air Con-
ditioning System.
5. Remove the power booster.

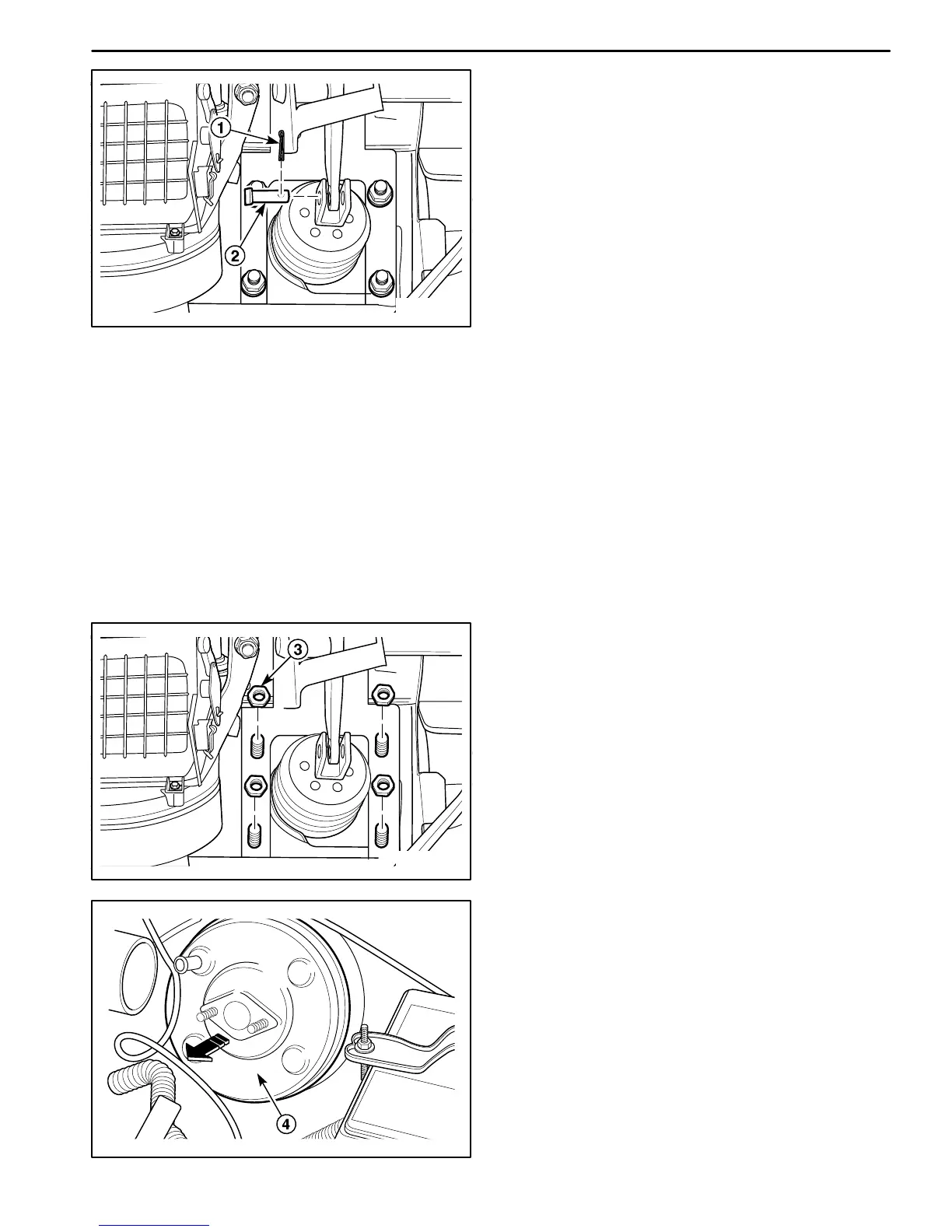

D Straighten the cotter pin and remove it (1).
D Remove the clevis pin (2).
D24C002
D Remove the nuts (3).
D107A521
D Remove the power booster (4).
