FRONT DISC BRAKES 4D–9

DAEWOO M-150 BL2

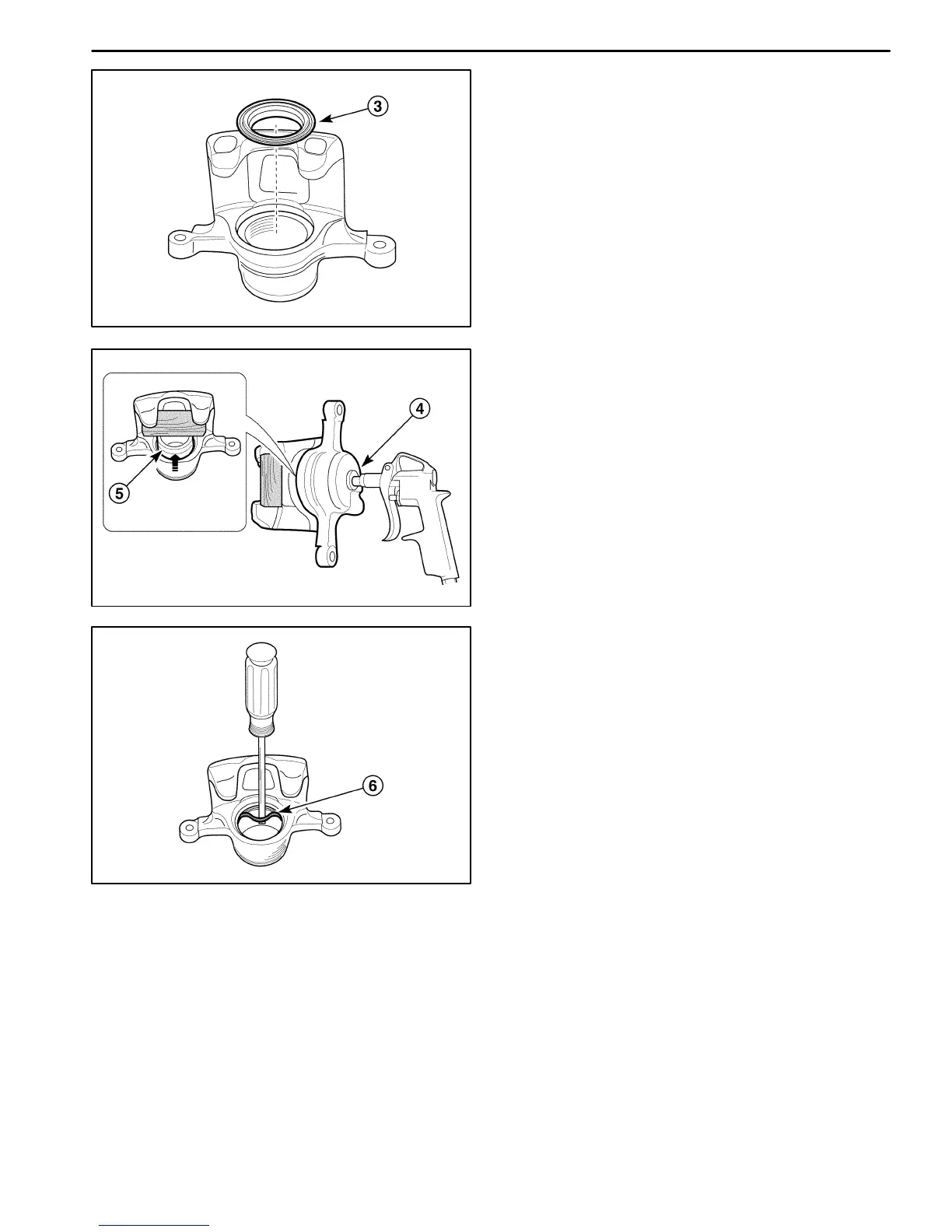

D107B704

D Remove the piston boot (3).

Caution: Do not face in the direction of removing.

D107B705

D Using compressed air, blow out the piston from the

cylinder (4).

D Remove the piston (5).

D107B706

D Remove the piston seal (6).
