4D –10 FRONT DISC BRAKES
DAEWOO M-150 BL2
D17B708B
D17B707A
26
Assembly Procedure
Important: Clean all parts in denatured alcohol. Dry the
parts with unlubricated compressed air.
Important: Lubricate the piston with brake fluid.
1. Assembly the cylinder assembly.
D Install the piston seal.
D Push the piston inward until it is properly seated.
D Install the piston boot.

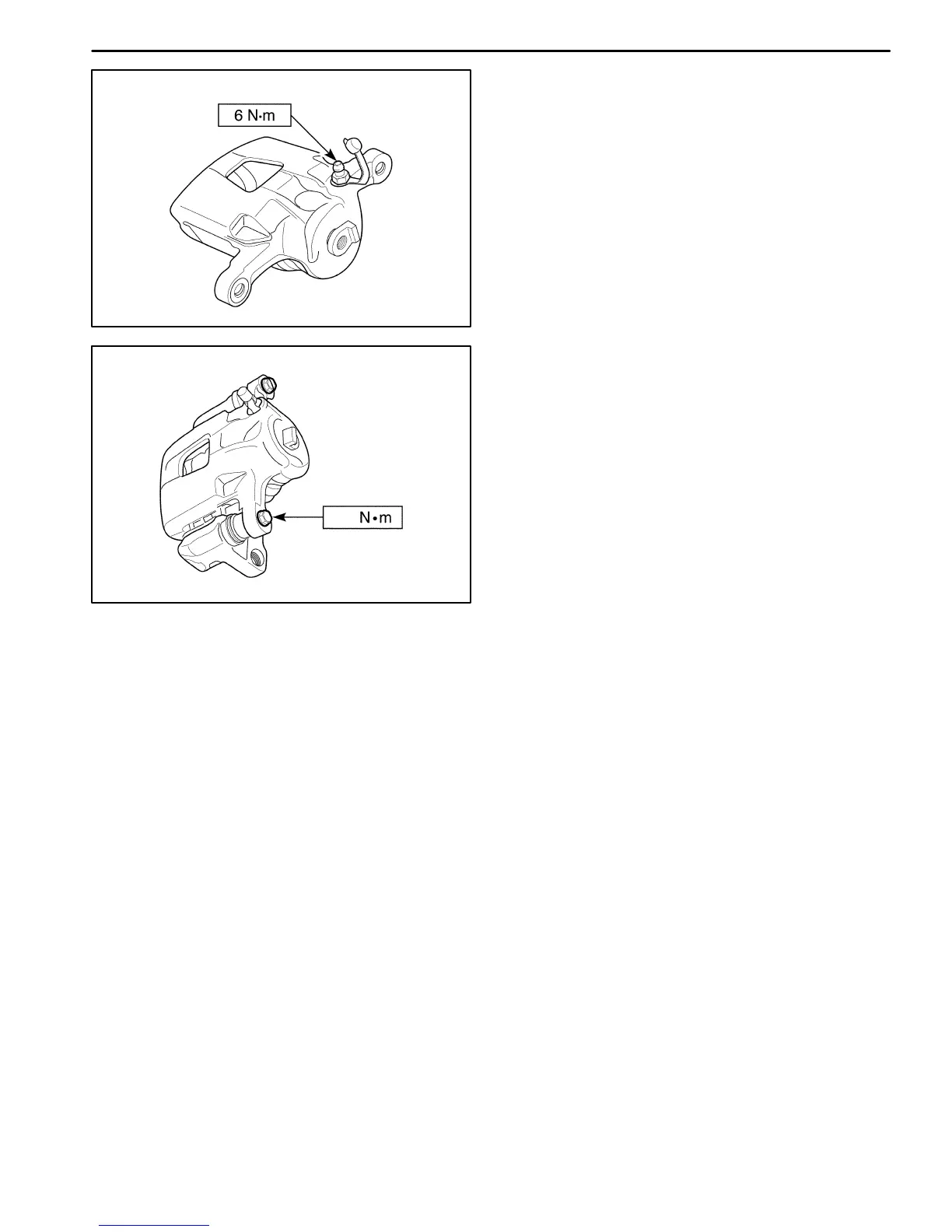

D Install the bleeder plug.
Tighten
Tighten the bleeder plug to 6 NSm (53 lb-in).
D Install the bleeder plug cap.
2. Assemble the carrier.
D Install the guide pin and boot.
D Install the spring.
D Install the pads.
3. Install the pin bolt connecting the cylinder assembly
and carrier.
Tighten
Tighten the pin bolt to 26 NSm (19 lb-ft).
4. Install the caliper assembly. Refer to “Caliper Assem-
bly” in this section.
To Next Page
