5B–26 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D103B708

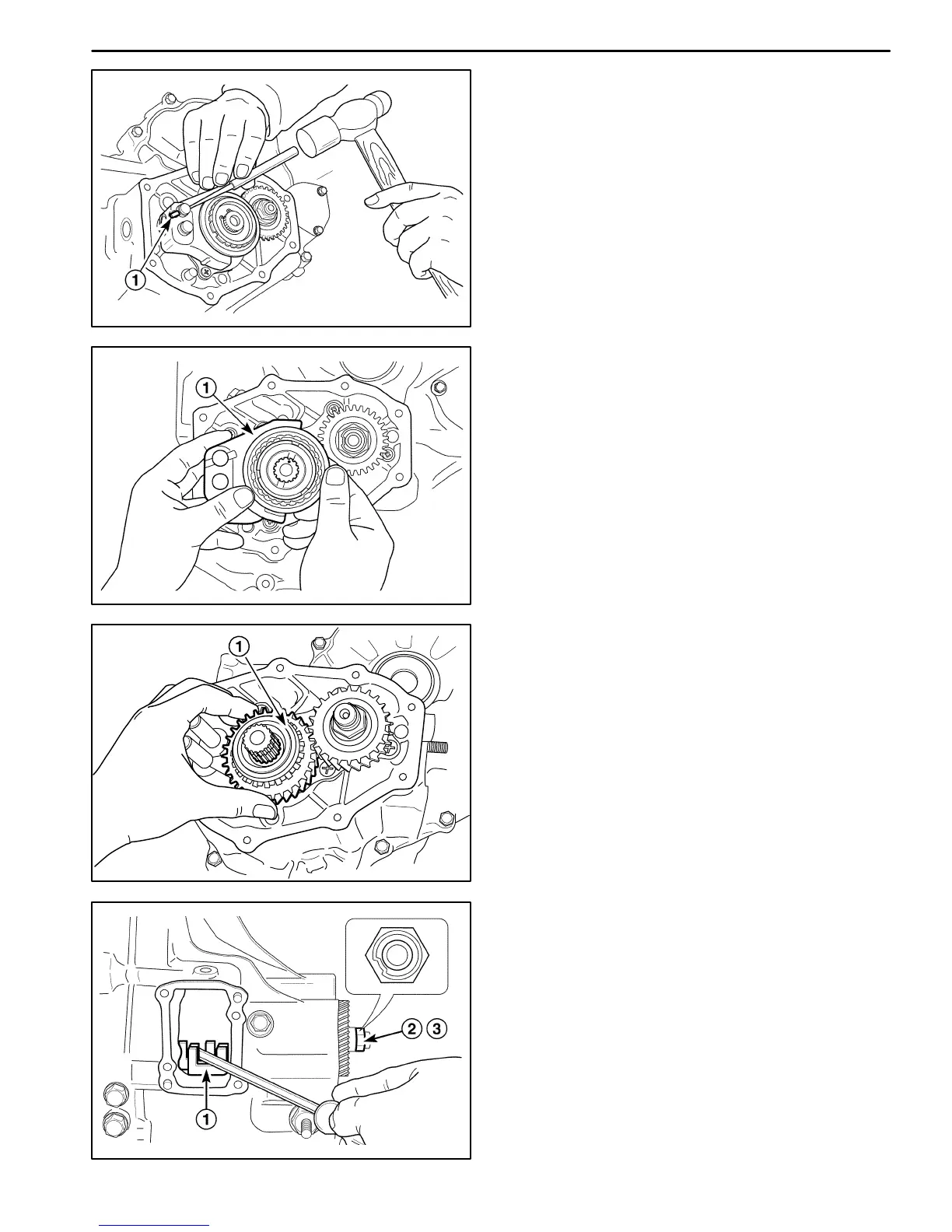

10. Remove the fifth–gear shift fork pin.
D Shift the shift fork to the fifth–gear.
D Remove the fork pin using a pin punch and a
hammer (1).
D103B709
11. Remove the input shaft fifth–gear fork and synchro-
nizer hub assembly.
D Pull and remove the fork and the hub assembly
together (1).
D Remove the sleeve, key and spring from the syn-
chronizer hub assembly.
D103B710
12. Remove the input shaft fifth–gear, the synchronizer
ring and the fifth–gear bearing.
D Pull and remove the fifth–gear, wave spring and
synchronizer ring together (1).
D Remove the fifth–gear bearing.
D103B711
13. Remove the countershaft fifth–gear.
D Shift the shift yoke using a driver to engage the
first–gear and the third–gear or the second–gear
and the fourth–gear (1).
D Remove the caulking and the nut. (2, 3)
