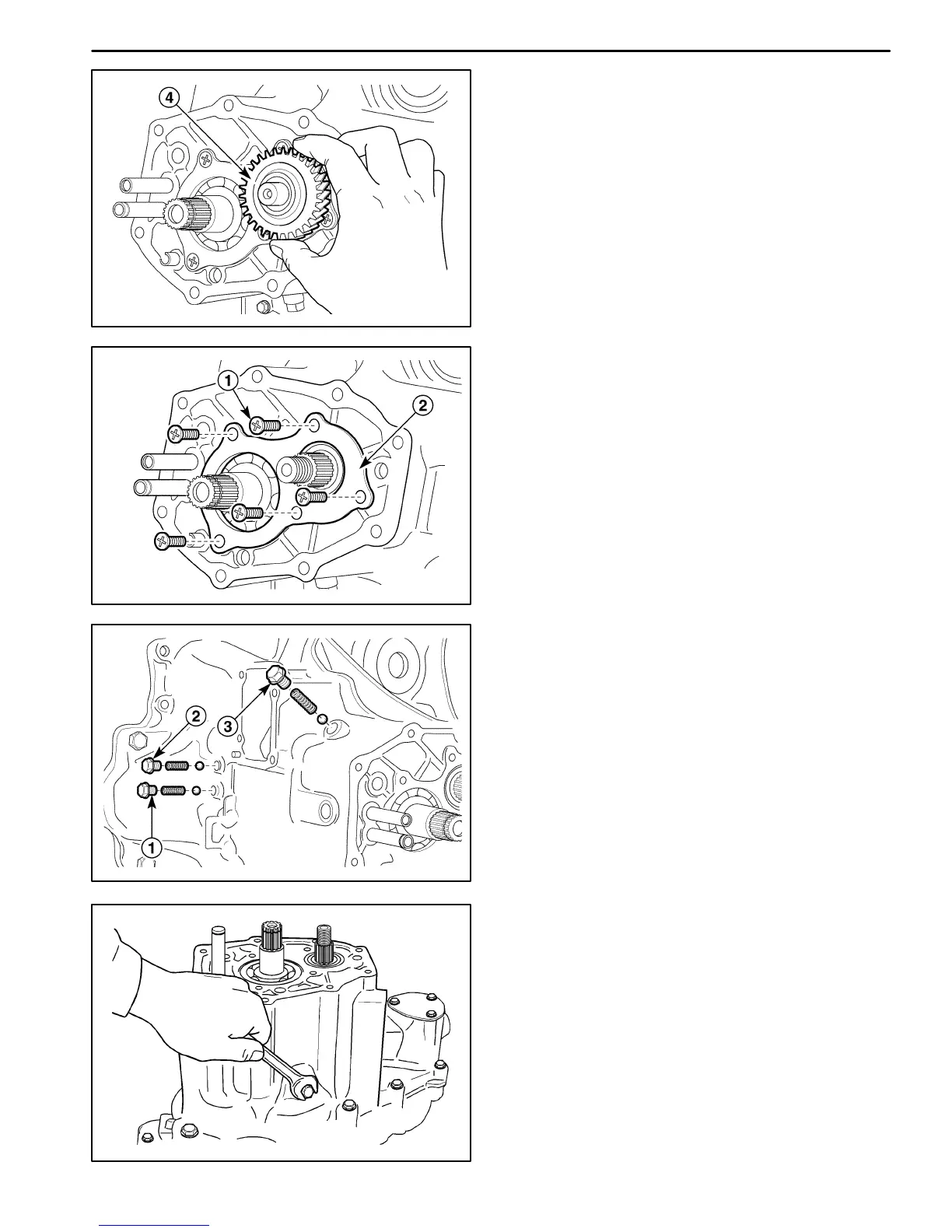

FIVE-SPEED MANUAL TRANSAXLE 5B–27
DAEWOO M-150 BL2
D103B712
D Remove the counter shaft fifth–gear (4).
D103B713
14. Remove the side cover plate and the counter shaft
bearing shim.
D Remove the screws (1).
D Remove the side cover plate (2).
D Remove the counter shaft bearing shim.
D103B714
15. Remove the shift shaft spring and ball.
D Remove the bolt and remove the fifth–reverse
gear shift shaft spring and ball (1).
D Remove the bolt and remove the third–fourth
gear shift shaft spring and ball (2).
D Remove the bolt and remove the first–second
gear shift shaft spring and ball (3).
Important: There is difference between the fifth–re-
verse gear shift shaft spring and the others. Mark it to
distinguish easily when installing.
D103B715
16. Remove the reverse idle gear shaft bolt.
Important: The case (Left) can not be removed without
removing the reverse idle gear shaft bolt.
