5B–42 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
Disassembly Procedure
1. Remove the gear unit. Refer to “Gear Unit” in this
section.
2. Remove the counter shaft right side bearing.
D103B766
3. Remove the counter shaft left side bearing and the
fourth gear.

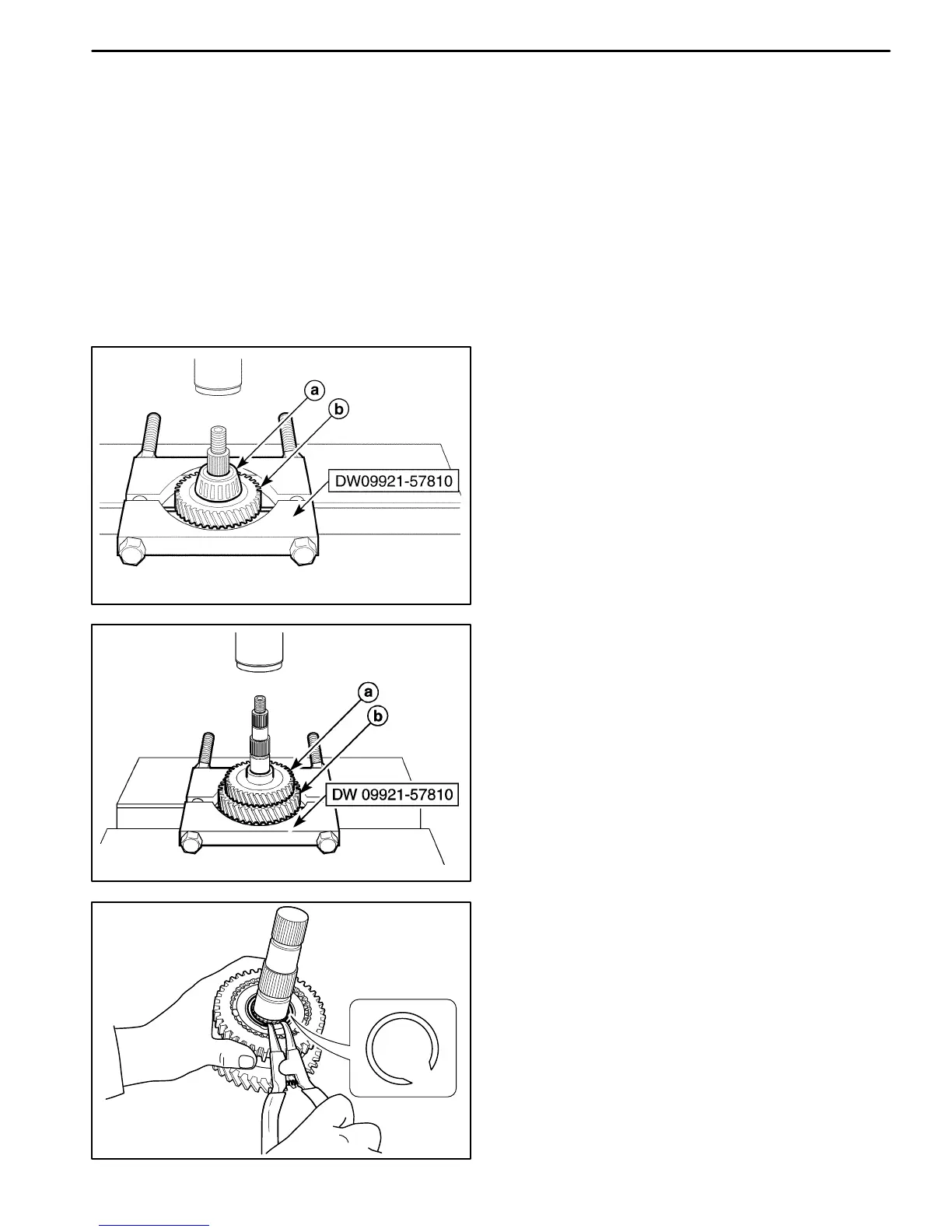

D Position the fourth gear to the gear, bearing remov-
er DW09921–57810.
D Remove the following parts by pressing.
a. Counter shaft left side bearing.
b. Fourth gear.
D103B767
4. Remove the counter shaft third–fourth gear spacer.
5. Remove the counter shaft third gear and second gear.
D Position the second gear to the gear, bearing re-
mover DW09921–57810.
D Remove the following parts by pressing
a. Third gear.
b. Second gear.
D103B768
6. Remove the counter shaft second gear bearing.
7. Remove the second gear synchronizer ring.
8. Remove the first–second gear synchronizer circlip.
