FIVE-SPEED MANUAL TRANSAXLE 5B–43
DAEWOO M-150 BL2
D103B769

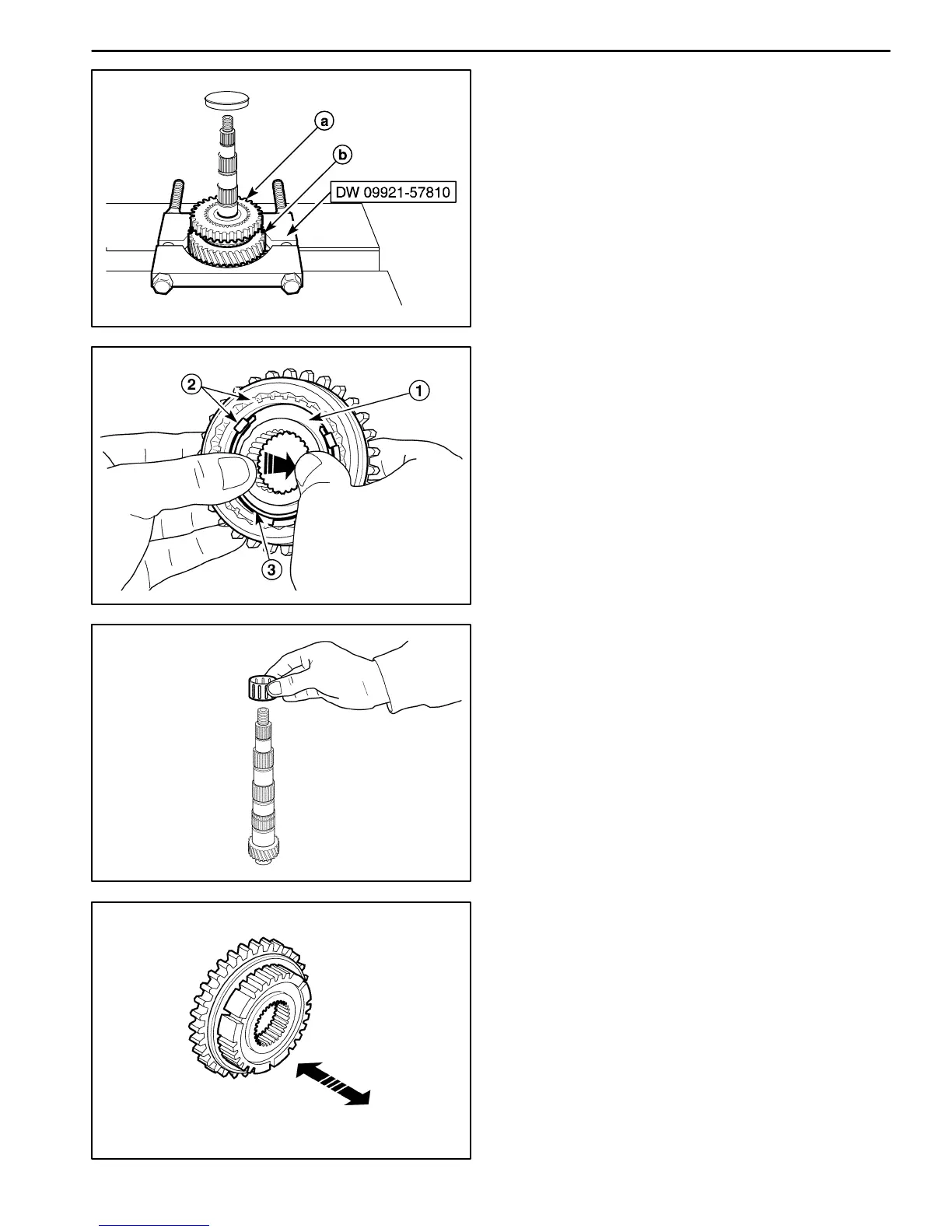

9. Remove the counter shaft first–second gear syn-
chronizer hub assembly, the first gear / the first gear
synchronizer ring.
D Position the first gear to the gear, bearing remov-
er DW09921–57810.
D Remove the following parts by pressing.
a. Synchronizer hub assembly.
b. First gear / First gear synchronizer ring.
D Remove the first gear synchronizer ring from the
first gear.
D103B770
10. Disassemble the first–second gear synchronizer
hub assembly.
D Push the hub from the hub assembly (1).
D Disassemble the synchronizer sleeve and key
(2).
D Disassemble the synchronizer springs (3).
D103B771
11. Remove the counter shaft first gear bearing.
D103B772
Synchronizer Hub and Sleeve Inspection
D Check the sleeve for improper operation after assem-
bling the hub and the sleeve.
D Check the wear of hub and sleeve.
D Replace synchronizer hub or sleeve if necessary.
