6B –4 POWER STEERING PUMP
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE

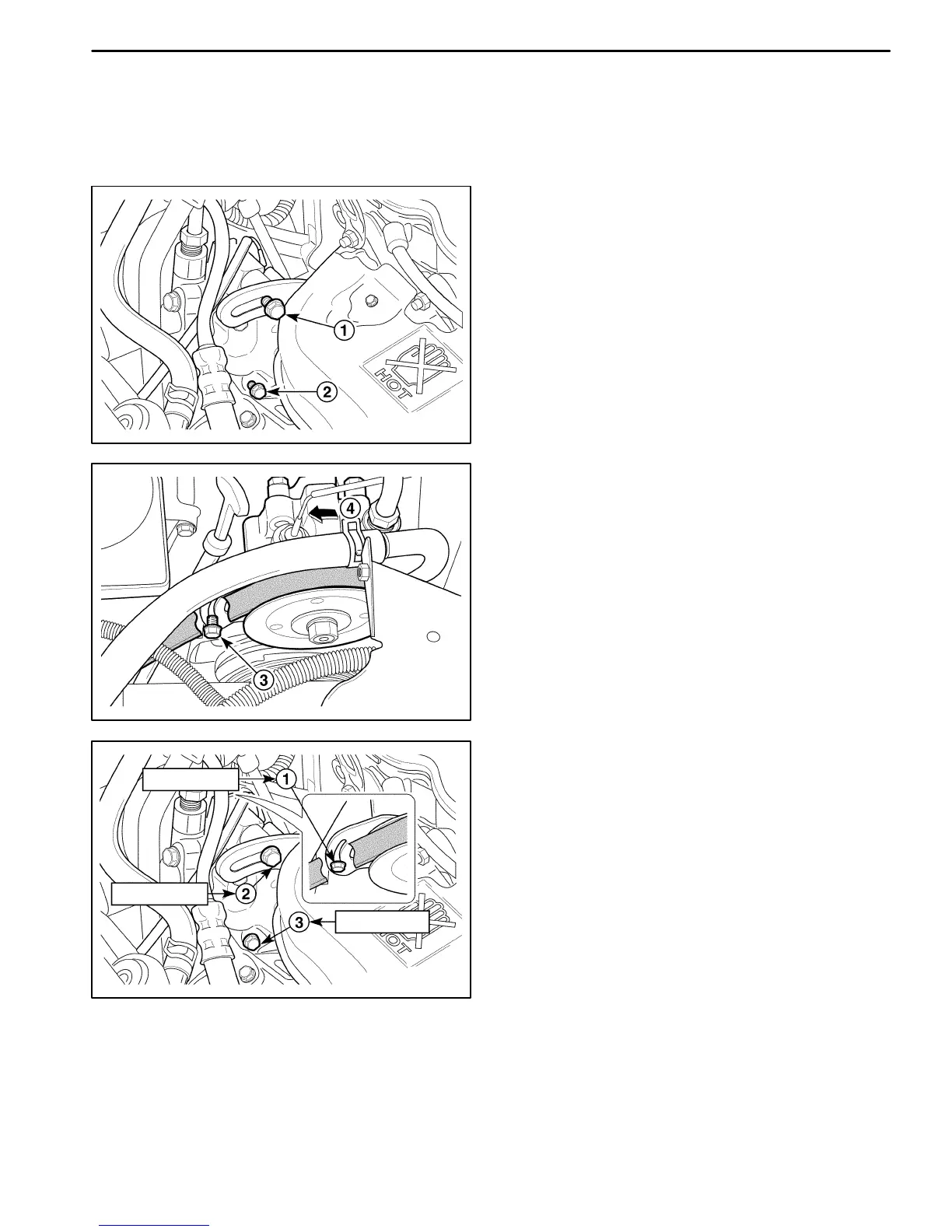

D105C524
PUMP DRIVE BELT
Removal Procedure
1. Remove the front passenger side headlamp. Refer to
Section 9B, Lighting Systems.
2. Remove the pump drive belt.
D Loosen the rear bracket adjusting bolt (1).
D Loosen the bolt (2).
D105C525
D Loosen the front bracket adjusting bolts (3).
D Push the pump forward (4).
18–22 NSm
20–24 NSm
20–24 NSm
D15C526A
Installation Procedure
1. Install the pump drive belt with the bolts.
Tighten
D Tighten the front bracket adjusting bolt to 18–22
NSm (13–16 lb-ft) (1).
D Tighten the rear bracket adjusting bolt to 20–24
NSm (15–18 lb-ft) (2).
D Tighten the power steering pump bolt to 20–24
NSm (15–18 lb-ft) (3).
2. Install the front passenger side headlamp. Refer to
Section 9B, Lighting Systems.
