POWER STEERING PUMP 6B–5
DAEWOO M-150 BL2
D105C527
PUMP DRIVE PULLEY
Tools Required
DW310–020 Power Steering Pulley Remove Holder
Removal Procedure
1. Remove the front passenger side headlamp.
Refer to Section 9B, Lighting Systems.
2. Remove the steering pump pulley.
D Remove the pump drive belt. Refer to “Pump Drive
Belt” in this section.

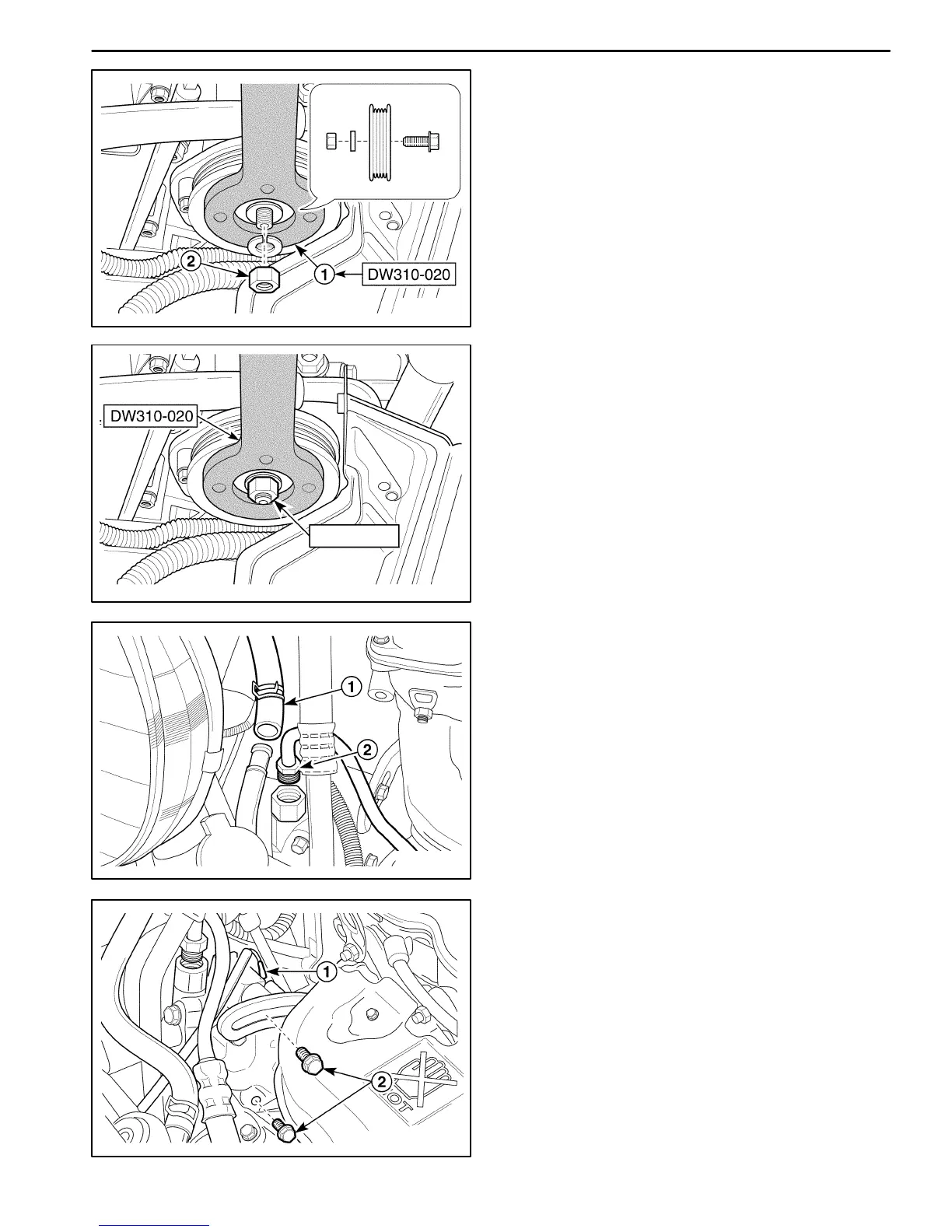

D Fix the pulley using the power steering pulley re-
move holder DW310–020 (1).
D Remove the pump drive pulley nut (2).
55–69 NSm
D15C528A
Installation Procedure
1. Install the pump drive pulley. Install the steering pump
pulley nut.
2. Install the pump drive belt.
3. Tighten the steering pump pulley nut using the power
steering pulley remove holder DW310–020.
Tighten
Tighten the steering pump pulley nuts to 55–69 NSm
(41–51 lb-ft).
4. Install the front passenger side headlamp.
Refer to Section 9B, Lighting Systems.
D105C529
PUMP ASSEMBLY
Removal Procedure
1.Remove the front passenger side headlamp.
Refer to Section 9B, Lighting Systems.
2. Disconnect the pipe line from the pump.
D Disconnect the supply line pipe hose (1).
D Disconnect the pressure line pipe fitting (2).
D105C530
3. Remove the power steering pump.
D Remove the pump drive belt. Refer to “Pump Drive
Belt” in this section.
D Disconnect the power steering pressure switch
connector (1). Refer to Section 6A, Power Steering
Systems.
D Remove the bolts (2).
To Next Page
