POWER STEERING GEAR 6C–5
DAEWOO M-150 BL2

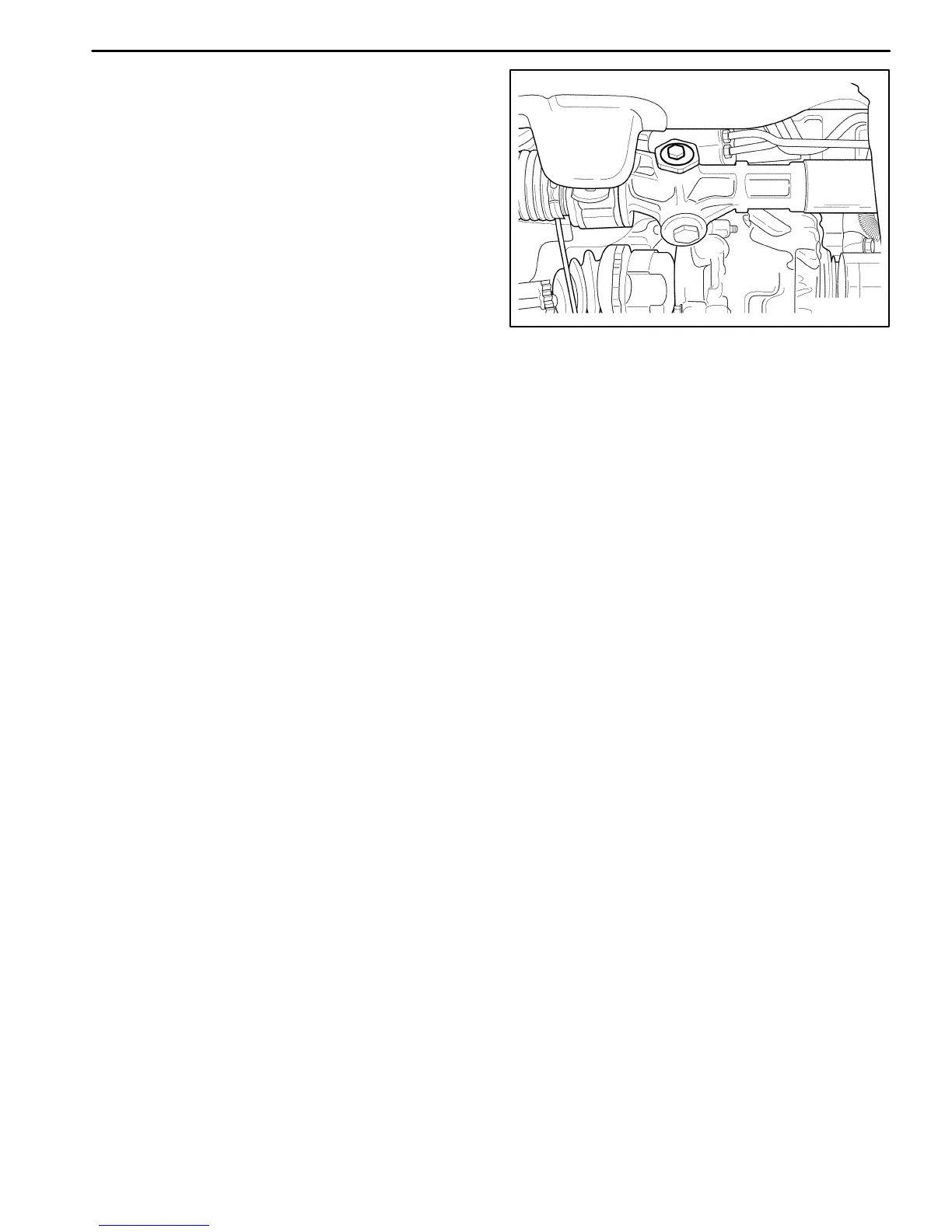

ADJUST THE FREE LOAD OF THE
STEERING GEAR
1. Place the steering wheel in the straight-ahead posi-
tion.
2. Raise and suitably support the vehicle.
3. Remove the adjust plug locknut.
4. Check the torque of the adjuster plug.
5. Check the torque is below the specification value or
the measured torque is over the specification value,
adjust the tightening torque.
D Place the rack gear in the straight-ahead position.
D Tighten the adjust plug to 10 NSm (89 lb-in).
D Turn the steering wheel all the way to the right and
the left about 5 times repeatedly.
D Place the rack gear in the straight-ahead position.
D Loosen the adjust plug.
D105C302
D Tighten the adjust plug to 4.5–5.5 NSm (40–49 lb-
in).
D Loosen the adjust plug to 67.5_.
6. Tighten the adjust plug locknut.
