6C –6 POWER STEERING GEAR
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
RACK AND PINION ASSEMBLY
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the intermediate shaft lower pinch bolt. Re-
fer to Section 6E, Steering Wheel and Column.
2. Remove the wheel. Refer to Section 2E, Tires and
Wheels.
3. Remove the tie rod ends. Refer to Section 6D, Manu-
al Steering Gear.
4. Remove the front exhaust pipe nuts. Refer to Section
1G, Engine Exhaust.
D105C534

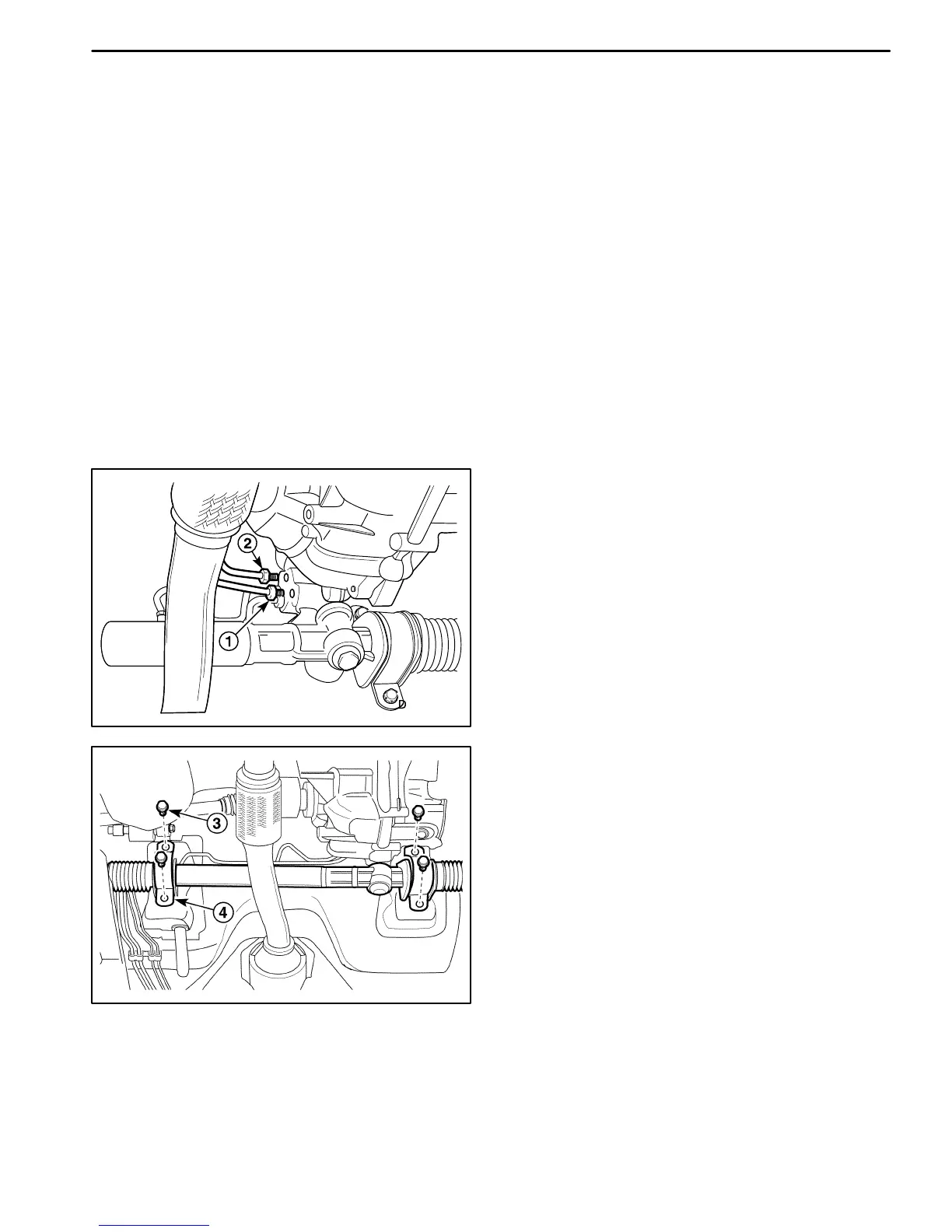

5. Remove the rack and pinion assembly.
D Disconnect the return line pipe from the steering
gear (1).
D Disconnect the pressure inlet line pipe from the
steering gear (2).
D Plug the opening in the power steering pipe line to
prevent fluid loss and contamination.
D105C535
D Remove the power steering gear retaining bracket
tighten bolts (3).
D Remove the power steering gear retaining bracket
(4).
Important: After moving the gear toward the passenger
side and pulling the gear of the driver side into the un-
derbody hole, remove the steering gear.
