POWER STEERING GEAR 6C–9
DAEWOO M-150 BL2
D105C702
RACK AND PINION STEERING GEAR
ASSEMBLY
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Disassembly Procedure
1. Remove the rack and pinion steering assembly from
the vehicle. Refer to “Rack and Pinion Assembly” in
this section.

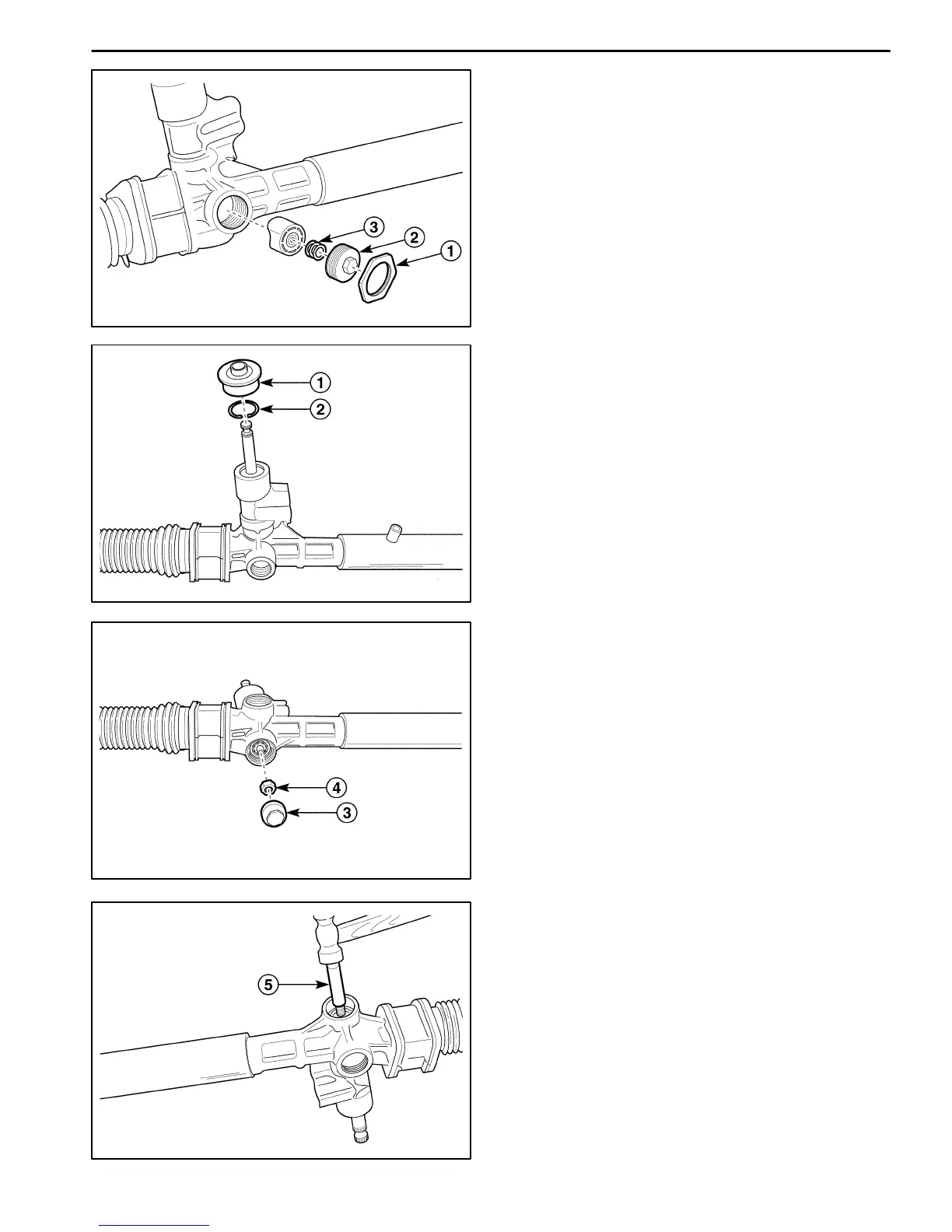

2. Remove the rack bearing.
D Remove the adjuster plug locknut (1).
D Remove the adjuster plug (2).
D Remove the adjuster spring (3).
D105C703
3. Remove the steering pinion.
D Remove the dust cap (1).
D Remove the retaining ring (2).
D105C704
D Remove the steering pinion dust cap (3).
D Remove the steering pinion locknut (4).
Notice: If the stub shaft is not held, damage to the pin-
ion teeth will occur. While holding the stub shaft, remove
the locknut from the pinion.
D105C705
D Remove the steering pinion from the pinion bear-
ing by hitting the pinion with the flated drift and
hammer (5).
To Next Page
