6C –8 POWER STEERING GEAR
DAEWOO M-150 BL2
UNIT REPAIR
TIE ROD END BOOT
Refer to Section 6D, Manual Steering Gear.
D105C701

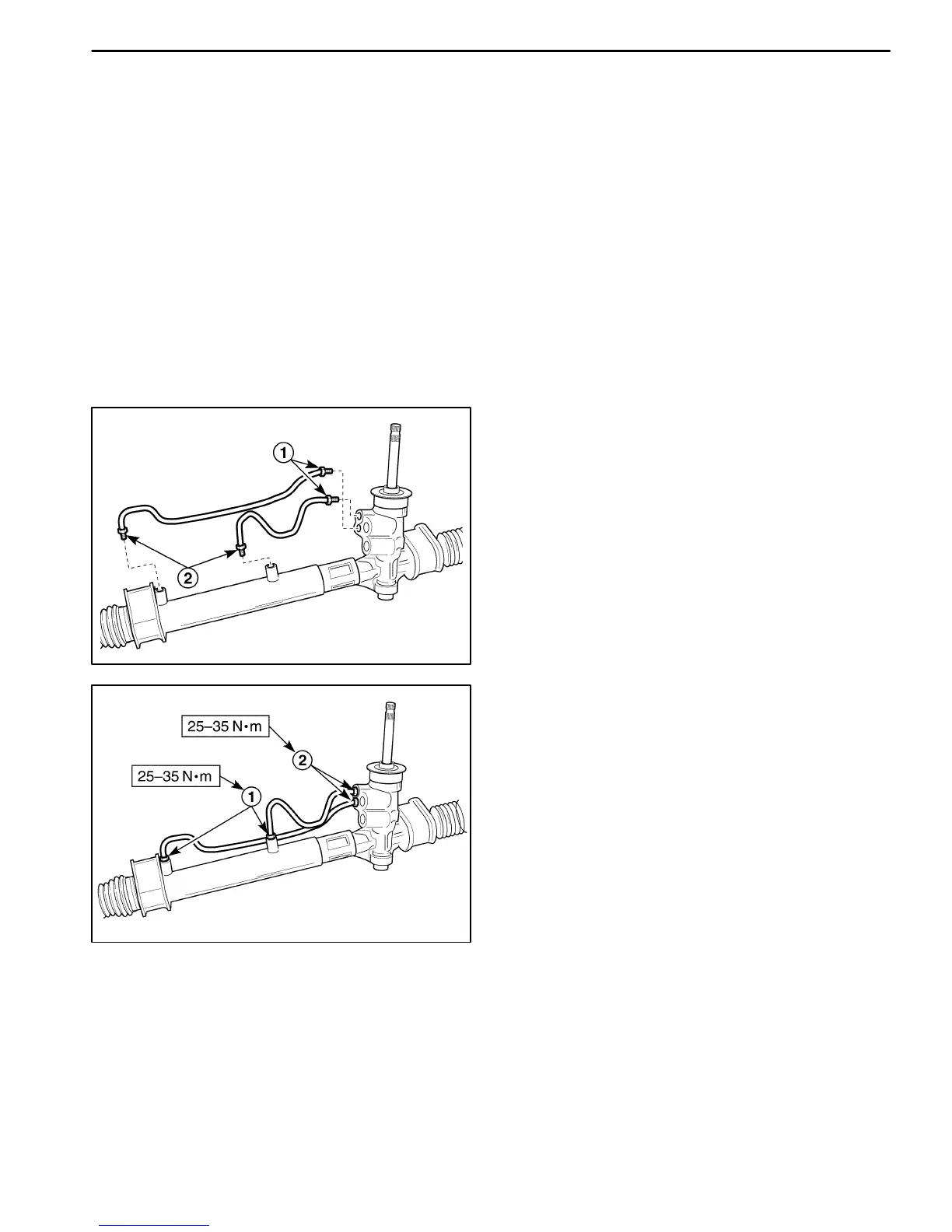

HYDRAULIC CYLINDER LINES
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Disassembly Procedure
1. Remove the rack and pinion steering assembly from
the vehicle. Refer to “Rack and Pinion Assembly” in
this section.
2. Disconnect the cylinder lines from the rack and pinion
housing.
D Remove the fitting (1).
D Remove the fitting (2).
D15C715A
Assembly Procedure
1. Connect the cylinder lines to the rack and pinion
housing.
2. Install the power steering line fittings at the pinion
valve end.
Tighten
Tighten the power steering line fittings to 25–35 NSm
(18–25 lb-ft) (1).
3. Install the power steering line fittings at the cylinder
end.
Tighten
Tighten the power steering line fittings to 25–35 NSm
(18–25 lb-ft) (2).
4. Install the rack and pinion steering assembly to the
vehicle. Refer to “Rack and Pinion Assembly” in this
section.
