MANUAL STEERING GEAR 6D–9
DAEWOO M-150 BL2
D105B507

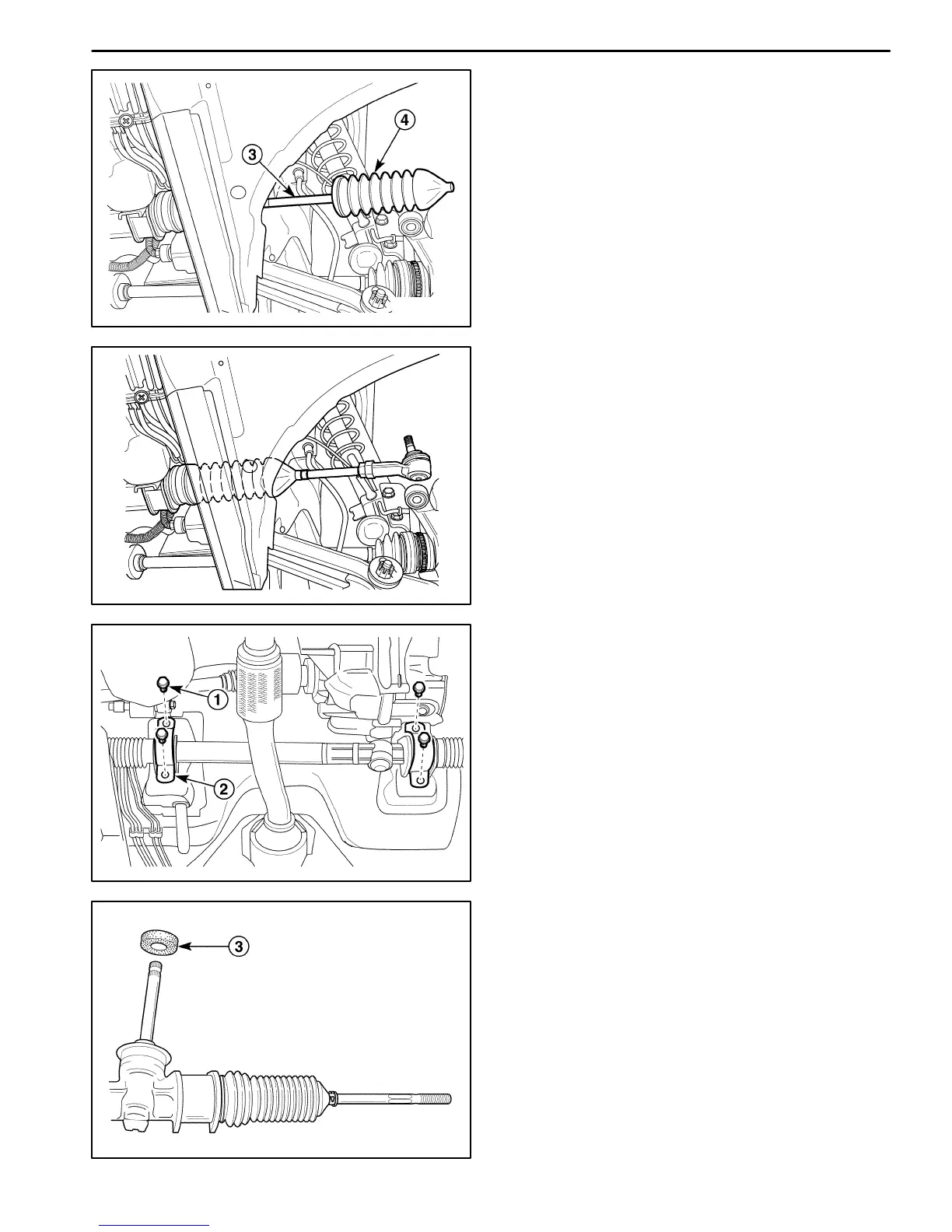

D Coat the greases on the tie rod to ease removal
(3).
D Remove the boot (4).
D105B508
Installation Procedure
1. Install the rack and pinion boot with the clamp and the
wire clamp.
2. Install the tie rod end nut.
3. Install the tie rod end. Refer to “Tie Rod End” in this
section.
D105B509
D105B510
RACK AND PINION STEERING GEAR
ASSEMBLY
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the intermediate shaft lower pinch bolt. Re-
fer to Section 6E, Steering Wheel and Column.
2. Remove the wheels. Refer to Section 2E, Tires and
Wheels.
3. Disconnect the tie rod end from the steering knuckle.
Refer to “Tie Rod End” in this section.
4. Remove the front exhaust pipe nuts. Refer to Section
1G, Engine Exhaust.
5. Remove the steering gear assembly from the vehicle.
D Remove the steering gear bracket bolts (1).
D Remove the steering gear bracket (2).
D Remove the steering gear assembly.
D Remove the packing (3).
