6D –10 MANUAL STEERING GEAR
DAEWOO M-150 BL2
D15B511A
Installation Procedure
1. Install the mounting to the steering gear assembly.
2. Install the steering gear assembly.

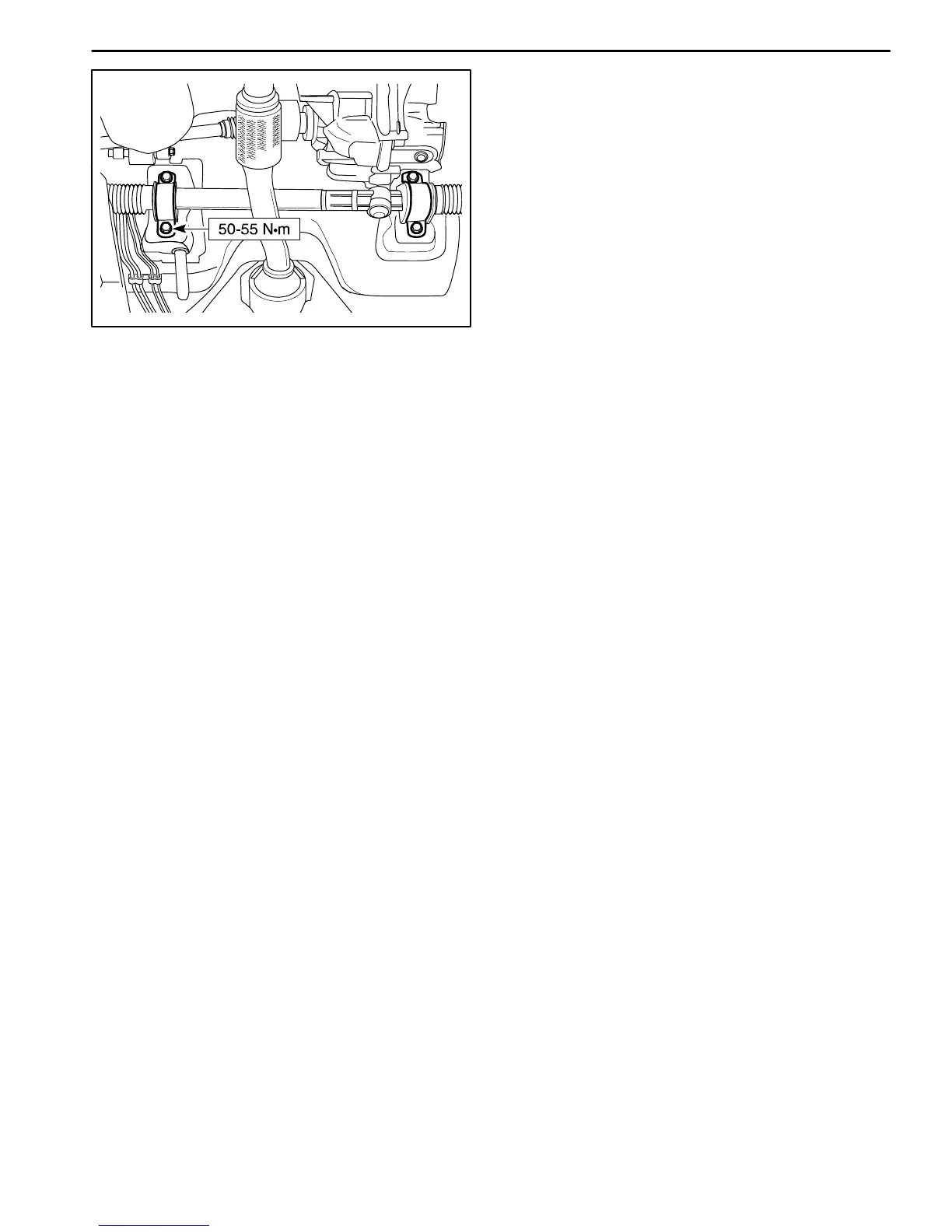

3. Install the steering gear bracket with the bolts.
Tighten
Tighten the steering gear bracket bolts to 50–55 NSm
(36–41 lb-ft).
4. Install the front exhaust pipe nuts. Refer to Section
1G, Engine Exhaust.
5. Connect the tie rod end to the steering knuckle. Refer
to “Tie Rod End” in this section.
6. Install the wheels. Refer to Section 2E, Tires and
Wheels.
7. Install the intermediate shaft lower pinch bolt. Refer
to Section 6E, Steering Wheel and Column.
