6D –12 MANUAL STEERING GEAR
DAEWOO M-150 BL2

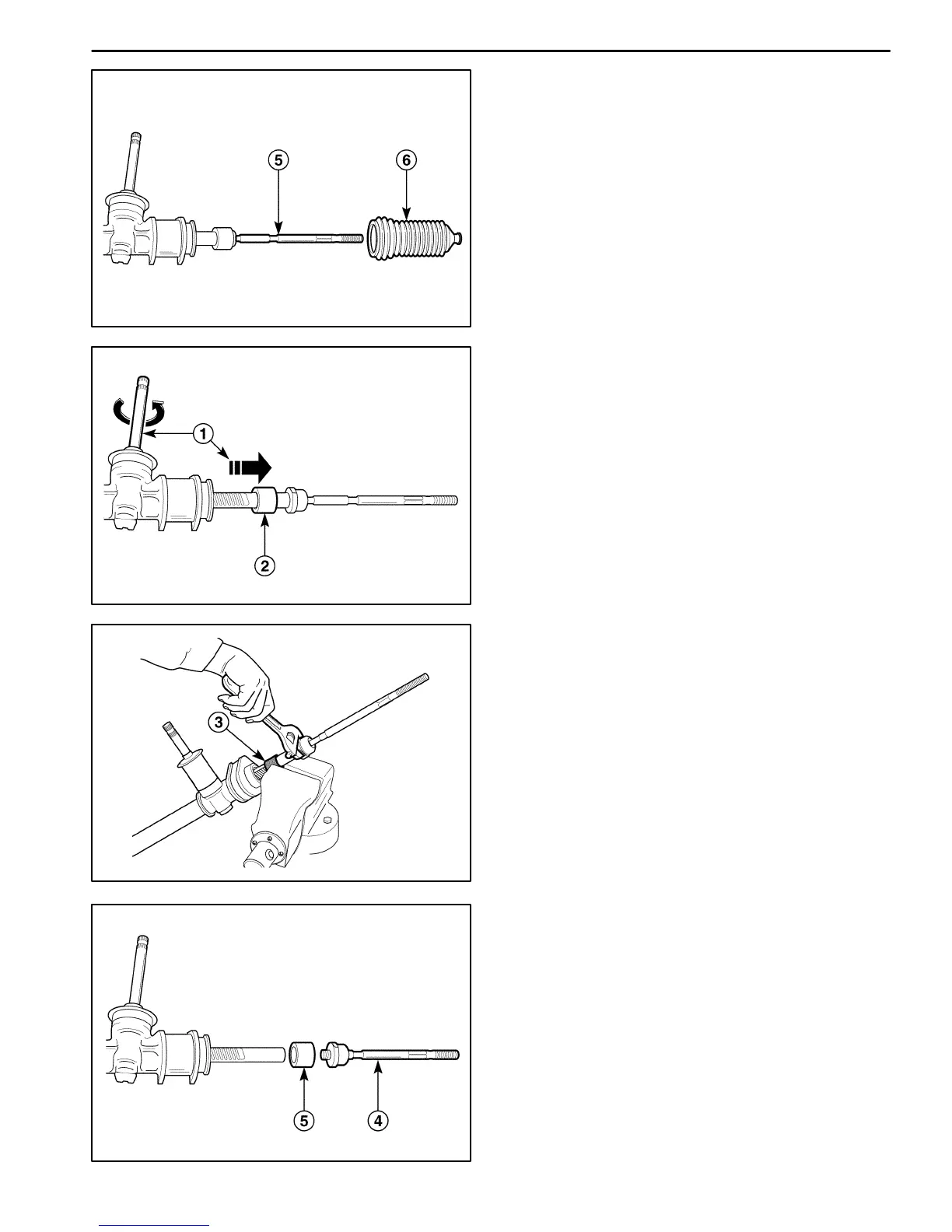

D105B704
D Coat the greases on the tie rod (5).
D Remove the rack and pinion boot (6).
D105B705
3. Remove the tie rod
D Pull the rack gear perfectly from the steering gear
housing by turning the pinion gear (1).
D Disconnect the shock damper ring from the tie rod
ball joint (2).
D15B706A
D Vise the rack gear (3).
Important: Clothe the rack gear with a cloth before vis-
ing the rack gear.
Notice: Do not vise the rack gear over two teeth face.
D105B707
D Remove the tie rod (4).
D Remove the shock damper ring (5).
