MANUAL STEERING GEAR 6D–13
DAEWOO M-150 BL2
D105B708

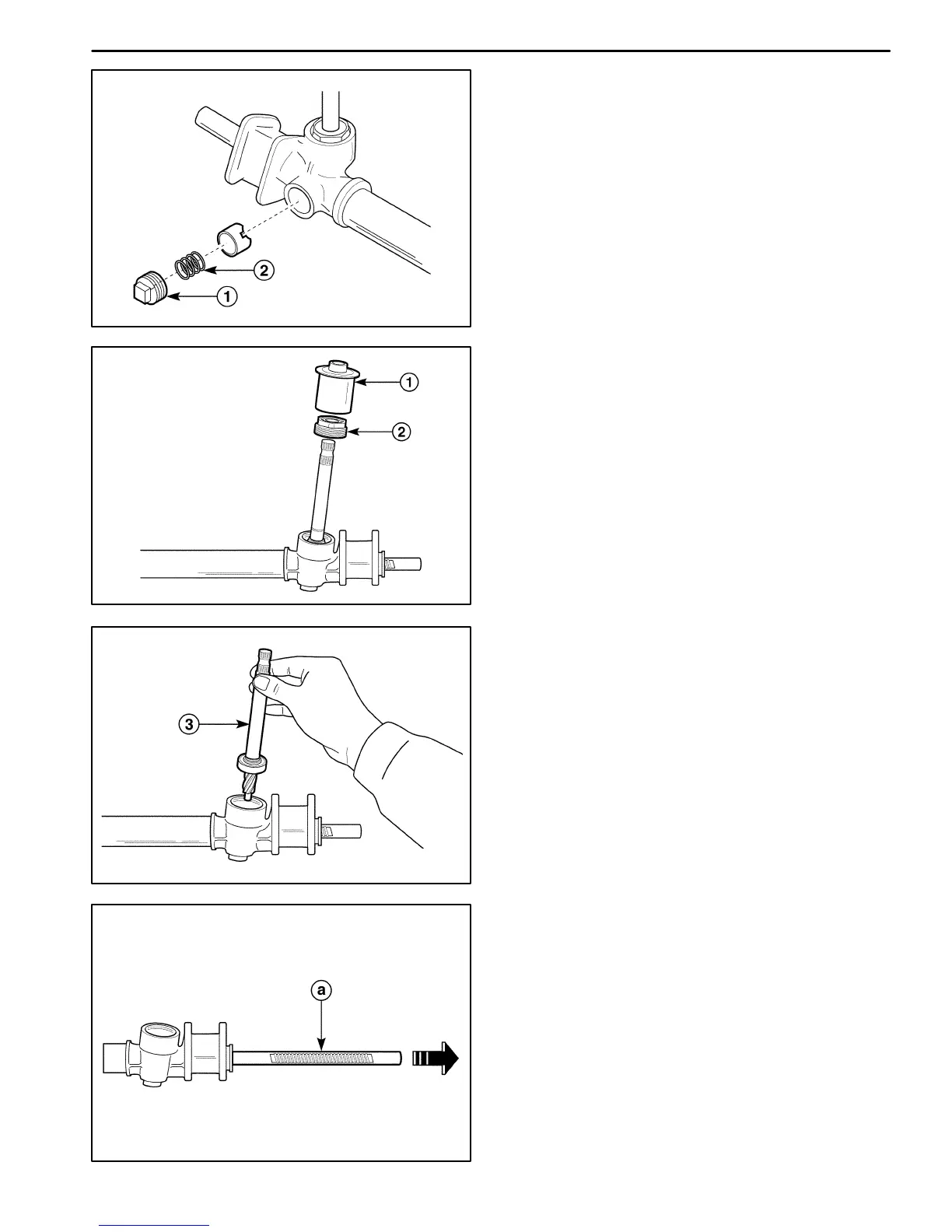

4. Remove the rack bearing.
D Remove the adjuster plug (1).
D Remove the adjuster spring (2).
D105B709
5. Remove the pinion and bearing assembly.
D Remove the dust cover (1).
D Remove the pinion plug (2).
Important: Do not reuse the removed pinion plug.
D105B710
D Remove the pinion and bearing assembly (3).
D105B711
6. Remove the rack gear toward the driver side of the
steering gear.
a. Rack gear.
Notice: Remove the rack gear toward the driver side of
the steering gear to prevent the bulk head in the steering
gear housing from damaging in installing and removing
the rack gear.
