6D –14 MANUAL STEERING GEAR
DAEWOO M-150 BL2
D105B712

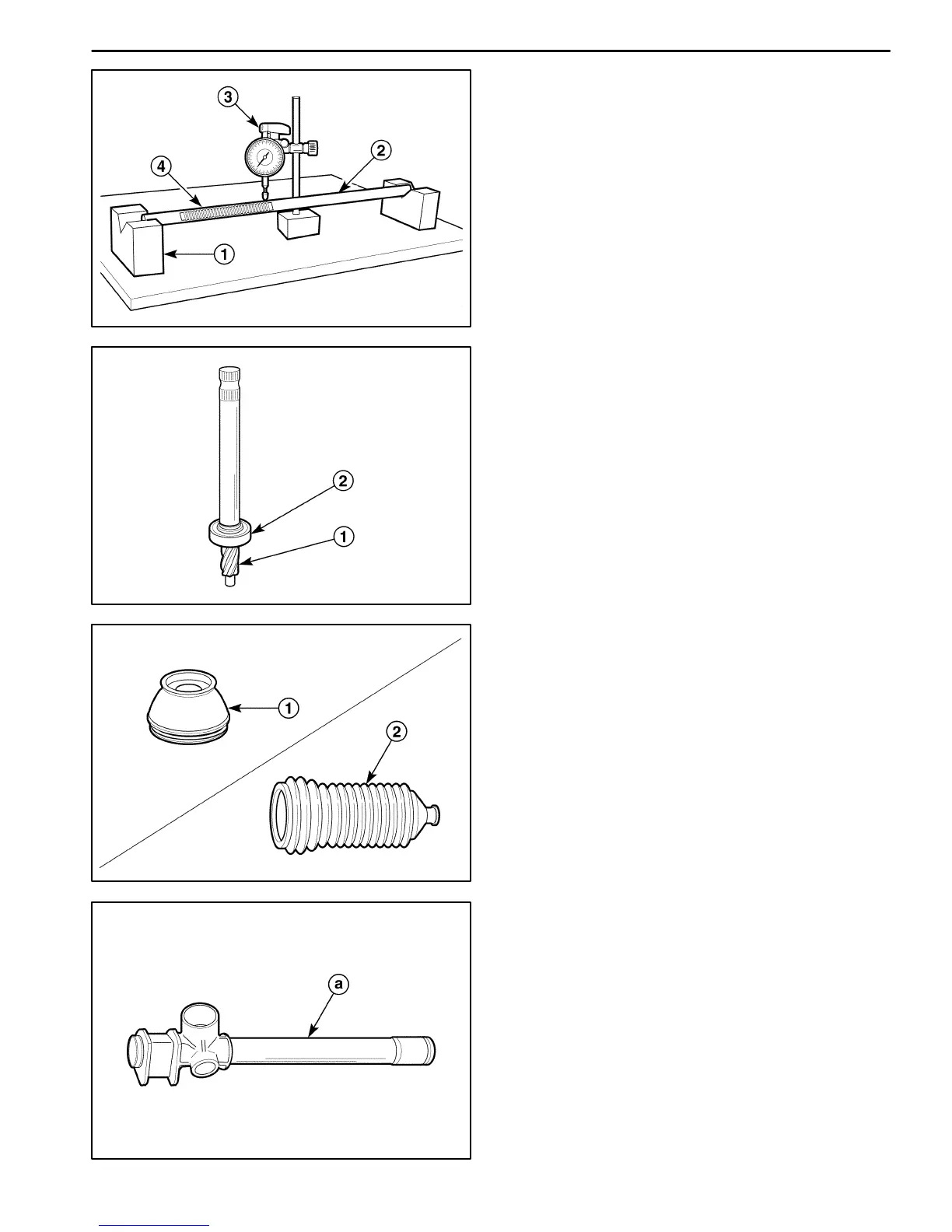

Inspection Procedure
1. Inspect the rack gear deformation and damage.
D Set the V–block on the plate (1).
D Set the rack gear on the V–block (2).
D Check the rack gear for deformation using a dial
gauge (3).
D Inspect the rack gear for wear and damage (4).
D105B713
2. Inspect the pinion and bearing assembly damage.
D Inspect the pinion gear for wear and damage (1).
D Inspect the bearing for loose and operation (2).
D105B714
3. Inspect the tie rod end boot and the rack and pinion
boot for damage.
D Inspect the tie rod end boot for crack and wear (1).
D Inspect the rack and pinion boot for crack and wear
(2).
D105B715
4. Inspect the steering gear housing for crack, deforma-
tion and wear.
a. Steering gear housing.
