STEERING WHEEL AND COLUMN 6E–3
DAEWOO M-150 BL2

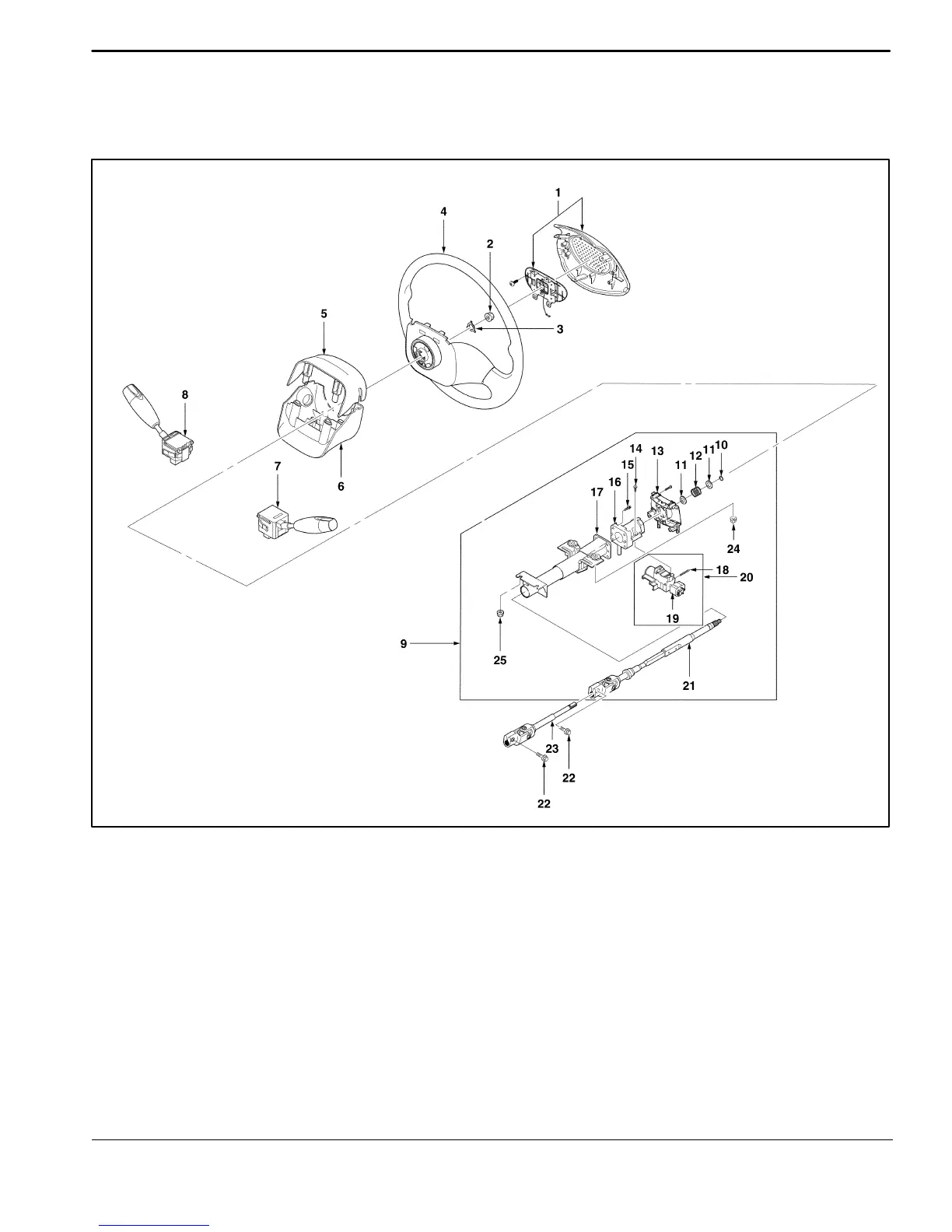

COMPONENT LOCATOR
STEERING WHEEL AND COLUMN
D15A401A
1. Horn Cover (Airbag Module)
2. Steering Wheel Nut
3. Locking Plate
4. Steering Wheel
5. Steering Column Upper Cover
6. Steering Column Lower Cover
7. Turn Signal Switch
8. Windshield Wiper Switch
9. Steering Column Assembly
10. Retaining Ring
11. Washer
12. Spring
13. Switch Housing
14. Bolt
15. Support Bolt
16. Steering Column Housing
17. Steering Column Jacket
18. Ignition Switch Retaining Screw
19. Ignition Switch
20. Steering Lock Housing Assembly
21. Steering Column Shaft
22. Pinch Bolt
23. Intermediate Shaft
24. Steering Column Upper Nut
25. Steering Column Lower Nut
