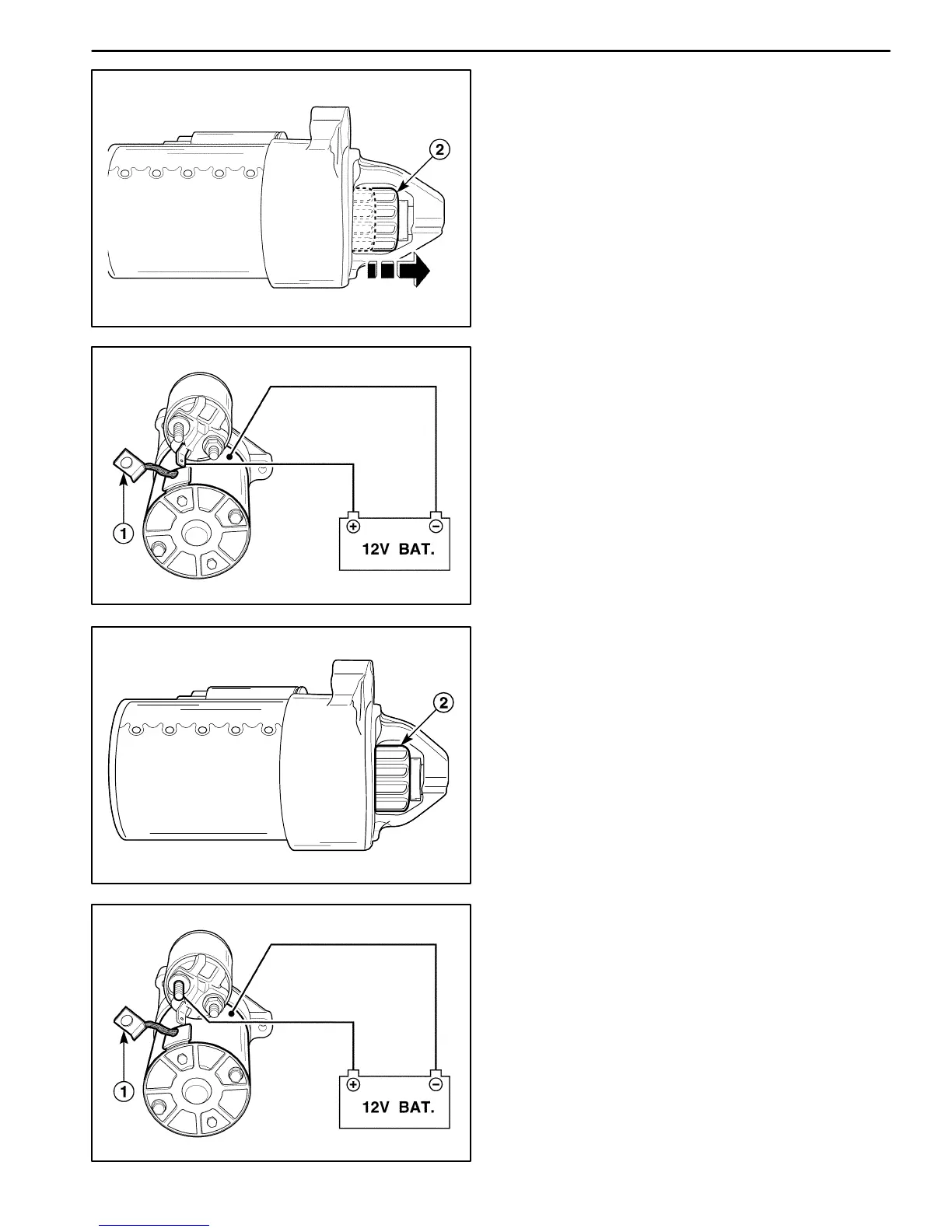

D Inspect the pinion gear’s moving to the outside (2).
D If the pinion gear does not move outside, replace
the magnetic switch.
D102E705
4. Solenoid hold-in test.
D Disconnect the starter motor terminal M (1).
D Connect the 12-volt battery lead to the starter mo-
tor terminal S and body.
Notice: Complete the testing in a minimum amount of
time to prevent overheating and damaging the solenoid.
D102E706
D Check the pinion gear’s moving to the outside (2).
D If the pinion gear move to the inside, the circuit is
open. Replace the magnetic switch.
D102E707
5. Solenoid return test.
D Disconnect the starter motor terminal M (1).
D Connect the 12-volt battery lead to the starter mo-
tor terminal S and body.
Notice: Complete the testing in a minimum amount of
time to prevent overheating and damaging the solenoid.
