ENGINE ELECTRICAL 1E–21
DAEWOO M-150 BL2
D102E708

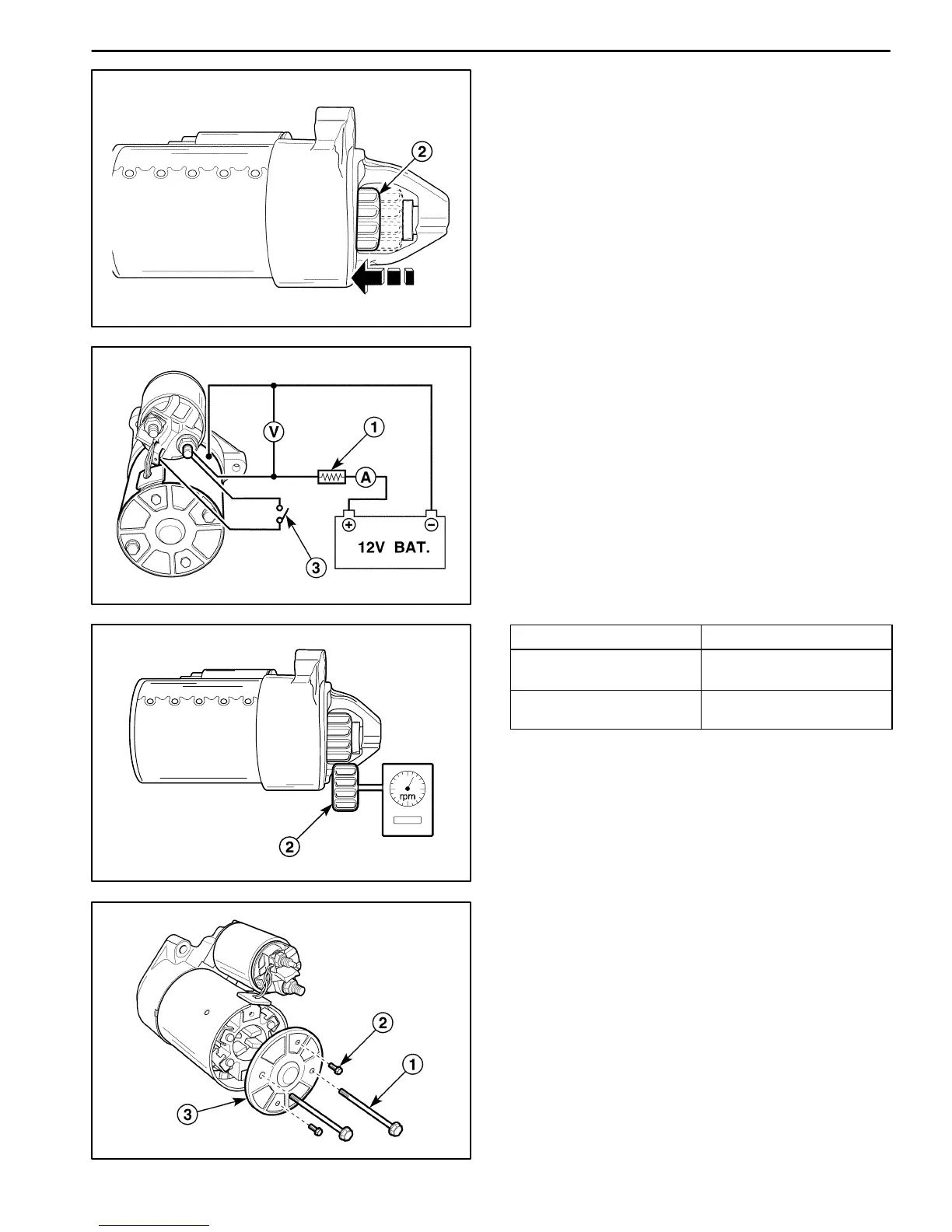

D Check the returning speed of pinion gear (2).
If the returning speed is fast, the operation is nor-
mal.
D Replace the solenoid if the operation is abnormal.
D102E709
5. No-road test.
D Connect the 12-volt battery lead to the starter cir-
cuit.
D Connect the current and the voltage (1).
D Install the starter motor rpm gage (2).
D Start the starter motor with the switch on (3).
D Measure the speed of pinion gear and the current.
D If the measurement satisfy the limit, the starter mo-
tor is normal.
D102E710
Desciption Limit
The speed of pinion
gear
Minimum: 2,000 rpm
Condition:
Voltage/Current
Maximum: 9V / 150A
D Replace the starter motor if necessary.
D102E711
Disassembly Procedure
1. Remove the starter contact end frame.
D Remove the through-bolts (1).
D Remove the contact end frame bolts (2).
D Remove the frame with the spacer (3).
To Next Page
