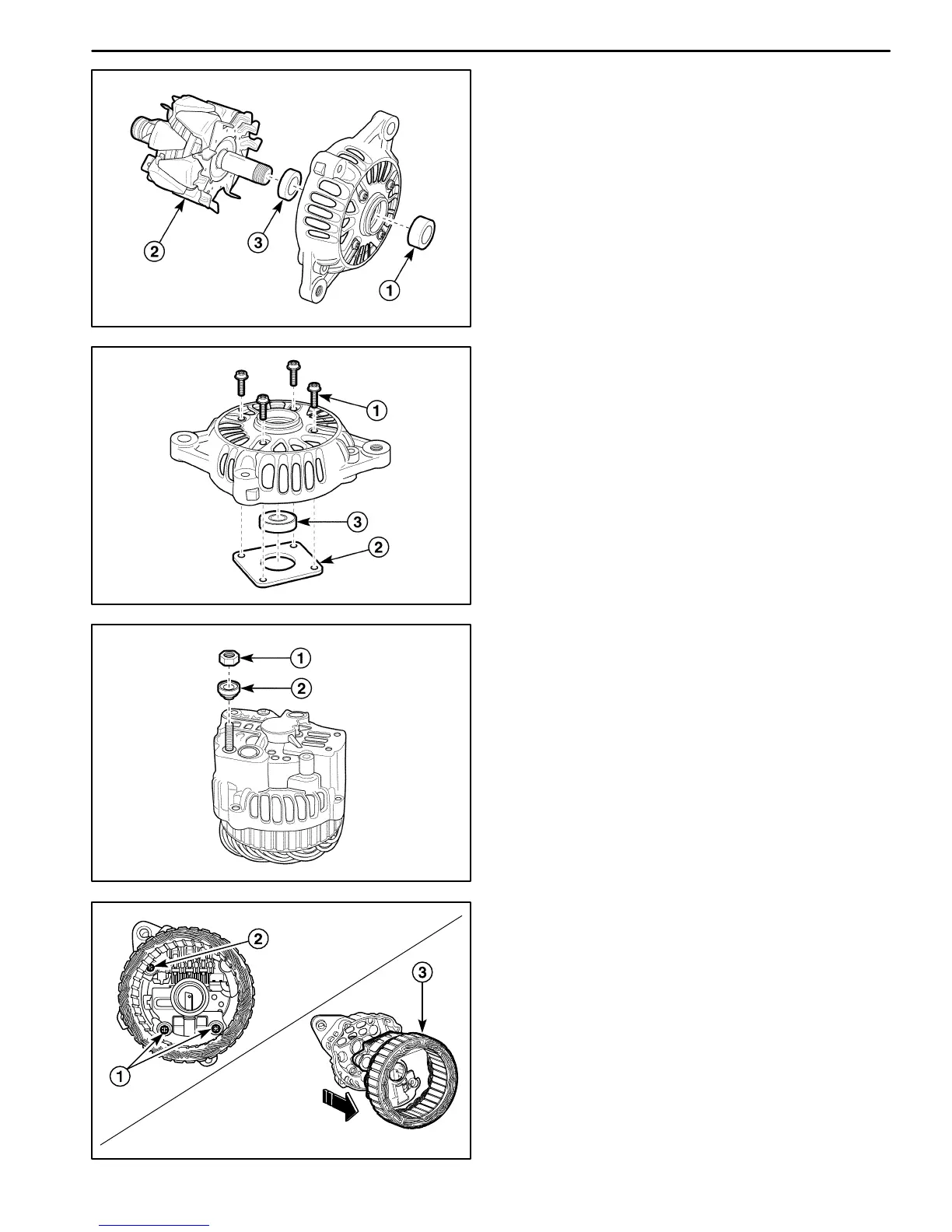

4. Remove the front bracket, rotor and collar.
D Remove the collar (large) (1).
D Remove the rotor from the front bracket (2).
D Remove the collar (small) from the rotor shaft (3).
D102E725
5. Remove the front bearing.
D Remove the support plate screws (1).
D Remove the plate (2).
D Remove the front bearing using the press (3).
D102E726
6. Remove the battery positive terminal nut from the
rear bracket.
D Remove the battery position terminal nut (1).
D Remove the washer (2).
D102E727
7. Remove the stator assembly from the rear bracket.
D Remove the rectifier screw (1).
D Remove the brush holder and regulator assembly
screws (2).
D Remove the stator assembly with the rectifier /
brush holder / regulator (3).
