1E–26 ENGINE ELECTRICAL
DAEWOO M-150 BL2
D102E728

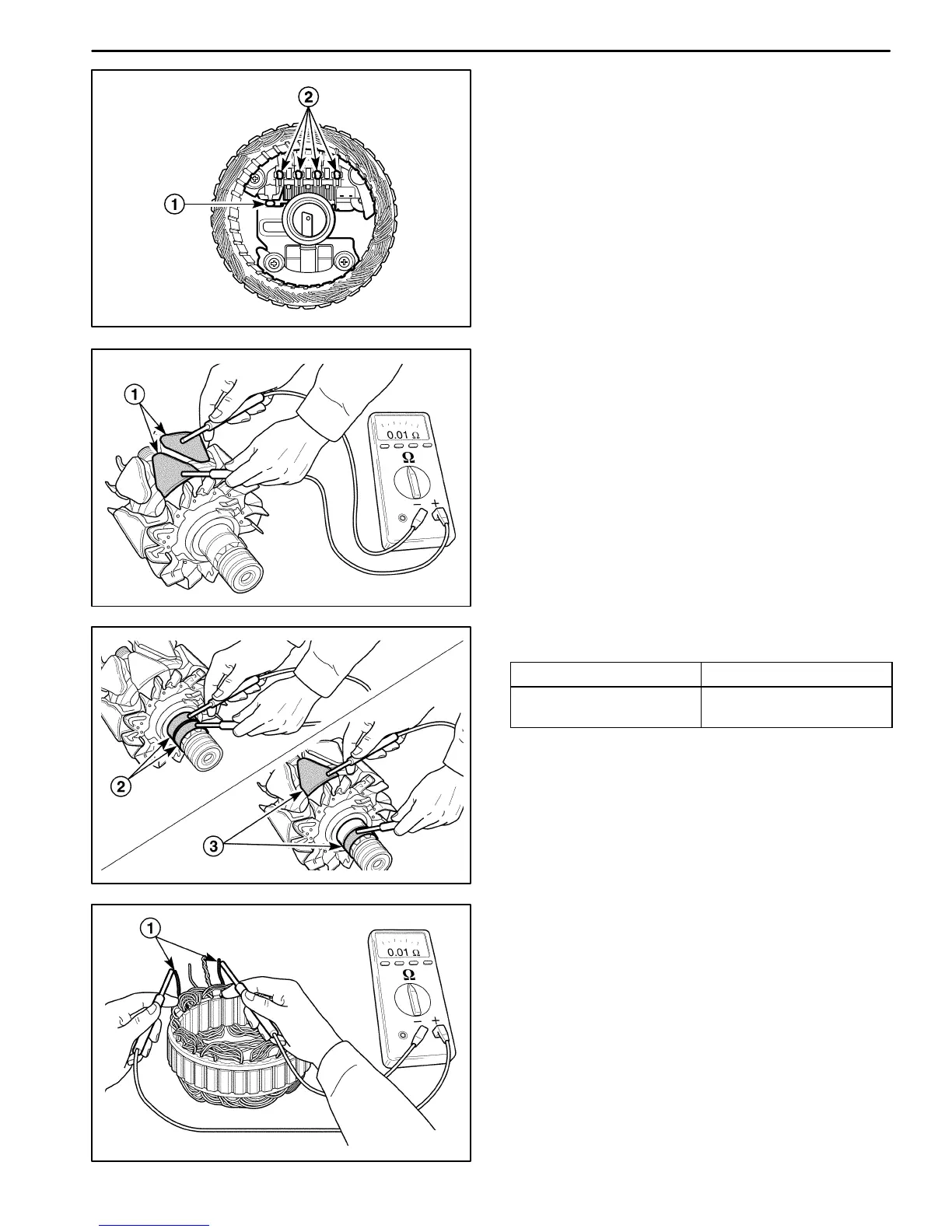

8. Remove the rectifier / brush holder / regulator from
the stator.
D Remove the rectifier / brush holder / regulator con-
nections (1).
D Remove the stator and rectifier connections (2).
Notice: If the stator connections are welded, melt the
lead. Avoid overheating as it can damage the diodes.
D102E729
Inspection / Measurement
1. Inspect the rotor assembly.
D Test the rotor for an open circuit by using the ohm-
meter (1). Replace the rotor if necessary.
D102E730
D Test the rotor for open or short circuit (2).
Desciption Limit
The measured
resistance
2.9Ω
D Replace the rotor if necessary.
D Test the rotor for open or ground circuit by using
the ohmmeter (3). Replace the rotor if necessary.
D102E731
2. Inspect the stator.
D Test the stator for an open circuit by using the ohm-
meter (1). Replace the stator if necessary.
