ENGINE ELECTRICAL 1E–27
DAEWOO M-150 BL2
D102E732

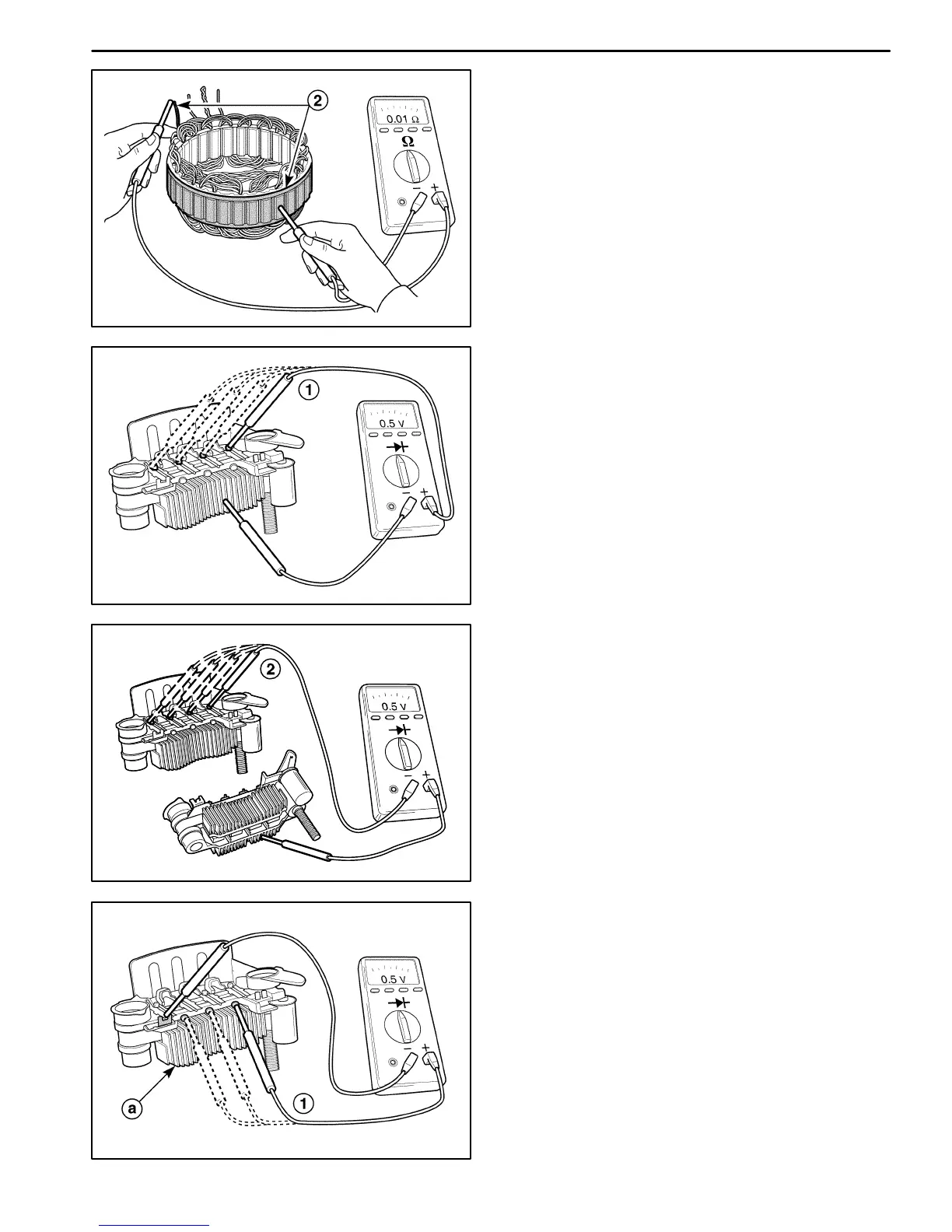

D Test the stator for open or ground circuit by using
the ohmmeter (2). Replace the starter if necessary.
D102E733
3. Inspect the rectifier.
D Positive rectifier test:
Inspect the open circuit for stator coil lead termi-
nals using the ohmmeter (1).
Replace the rectifier if necessary.
D102E734
D Negative rectifier test:
Inspect the open circuit for stator coil lead termi-
nals using the ohmmeter (2).
Replace the rectifier if necessary.
D102E735
4. Inspect trio diodes.
D Inspect the open circuit for trio diodes using the
ohmmeter (1).
D Replace the heat sink if necessary (a).
