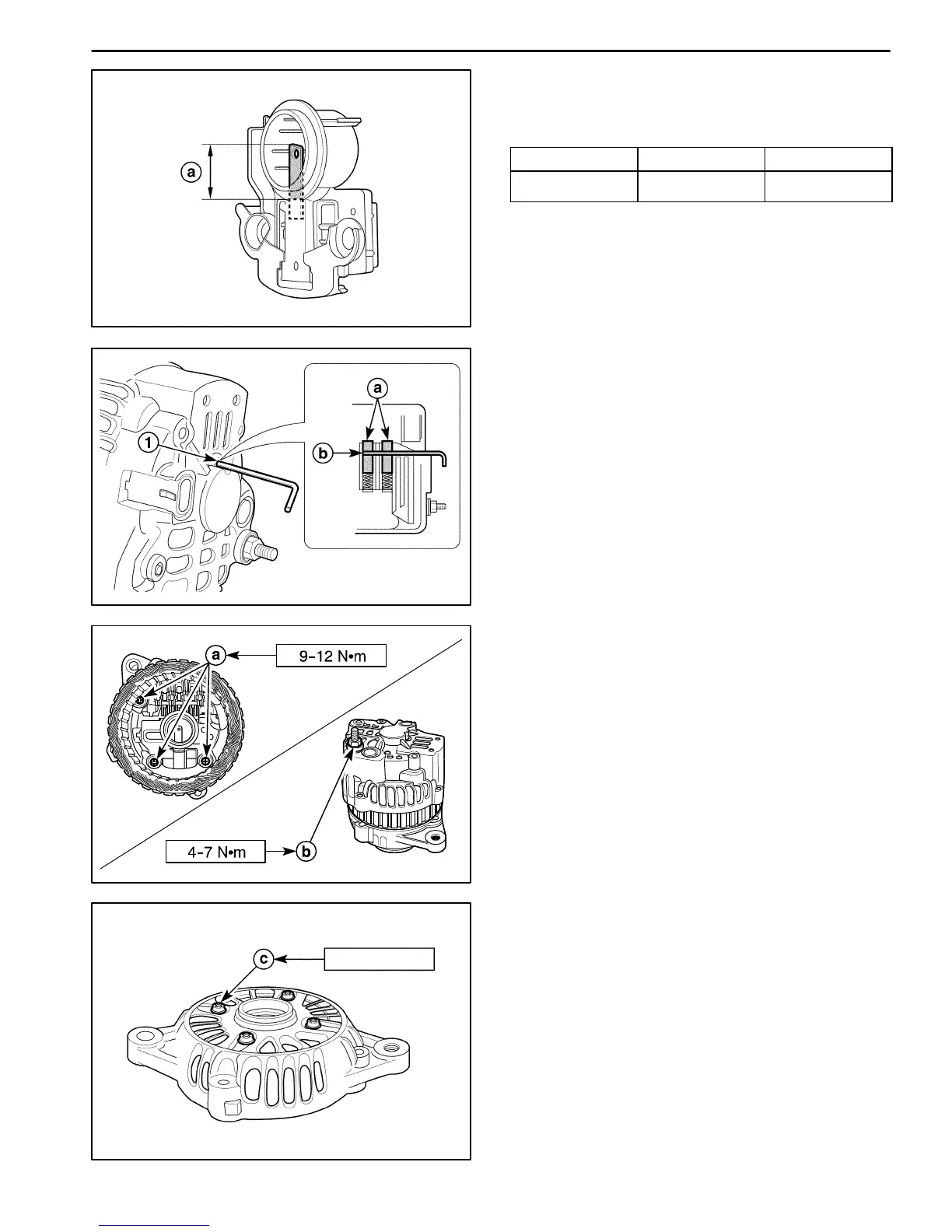

5. Inspect the brush wear.
D If the brush wear exceeds the specified valve (a),
replace the brush.
Desciption Standard Limit
Brushes wear 18.5 (0.73) 13.5 (0.53)
D102E737
Assembly Procedure
1. Install in the reverse order of removal.
D Assemble the stator assembly into the rear bracket
and rotor assembly.
a. Brushes.
b. Hole.
D12E738A
2. Install the bolts / nuts / screws.
Tighten
D Tighten the brush holder / regulator / rectifier
screws to 9–12 NSm (80–106 lb-in) (a).
D Tighten the battery positive terminal nut to 4–7
NSm (35–62 lb-in) (b).
D102E739
6–8 NSm
D Tighten the front bearing spot plate screws to 6–8
NSm (53–71 lb-in) (c).
