HORN 9C–3
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS

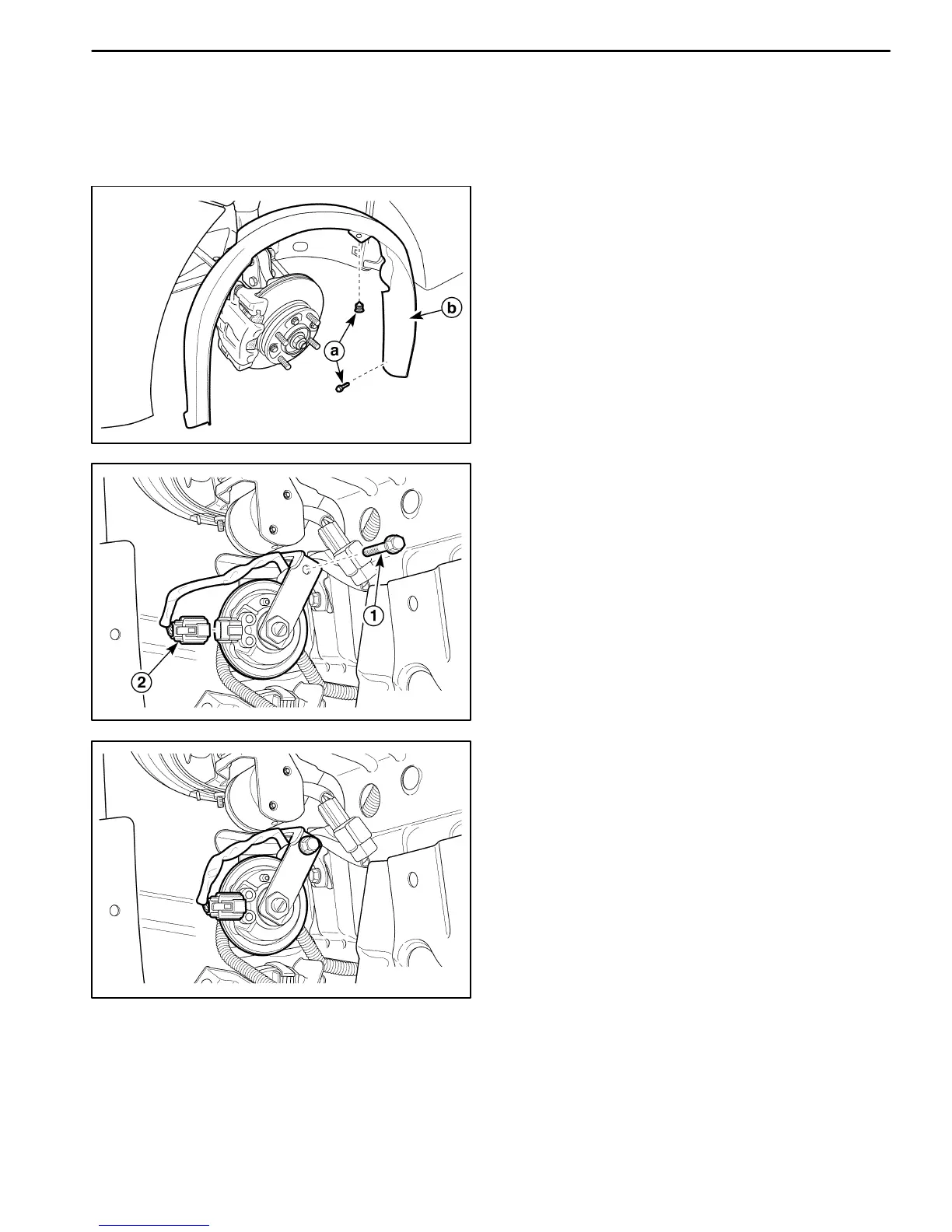

ON–VEHICLE SERVICE
D19C501A
HORN
Removal Procedure
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the front wheels.
4. Remove the front wheel house splash shield.
D Remove the clip and bolts.
a. Bolts and clips.
D Remove the wheel house splash shield.
b. Splash shield.
D19D517A
5 Remove the horn.
D Remove the bolt (1).
D Disconnect the electrical connector (2).
D19D518A
Installation Procedure
1. Install the horn with the bolt.
2. Connect the electrical connector.
3. Install the front wheel house splash shield with the
clips and the bolts.
4. Install the front wheels.
5. Lower the vehicle.
6. Connect the negative battery cable.
