Dell 3115CN - Fip-1; Fip-1. 55 Insert Printcart

1‑157
Chapter 1 Troubleshooting
Version 1 2006.11.21

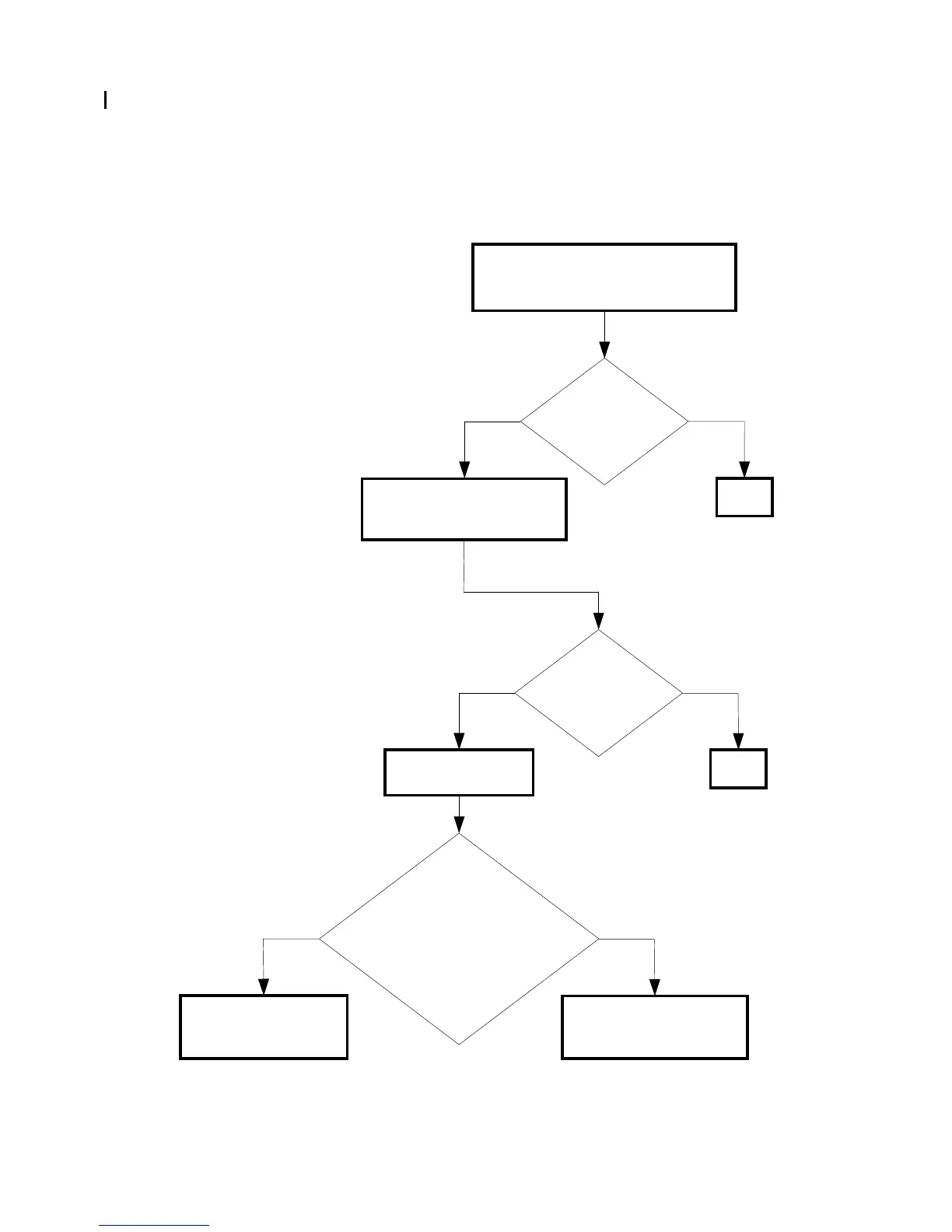

FIP-1. 55 Insert PrintCart 093-970
Possible causative parts:CARTRIDGE ASSY (Y) (PL5.1.21)
SENSOR ASSY CRU (PL5.1.4)
PWBA MCU (PL9.1.20)
Checking the toner cartridge installation
Reseat the toner cartridge on correct Y
position
Does the error still
occur when turning
on the power?
NoYes
Checking after replacing the
toner cartridge
Replace the toner cartridge.
Yes
No
Does the error still
occur when turning on
the power?
END
Checking the Toner
Sensor
END
Yes No
Does the number on the screen
increase by one, every time the toner
cartridge is reseated?
Checked by [Digital Input] - [DI-8] in
[IOT Diagnosis].
Replace the PWBA
MCU. (Removal 67/
Replacement 55)
Replace the Sensor ASSY
CRU. (Removal 21/
Replacement 25)
