Dell 3115CN - Gradation

2 - 59
Chapter 2 Operation of Diag.
Version 1 2006.11.21
4.6.10 Gradation
Outputs the tone pattern from 2% to 100% on a A4 paper for each of 4 colors.
When the PQ problem occurred, this test enables to identify the problem as the printing process or
PWBA ESS-related.

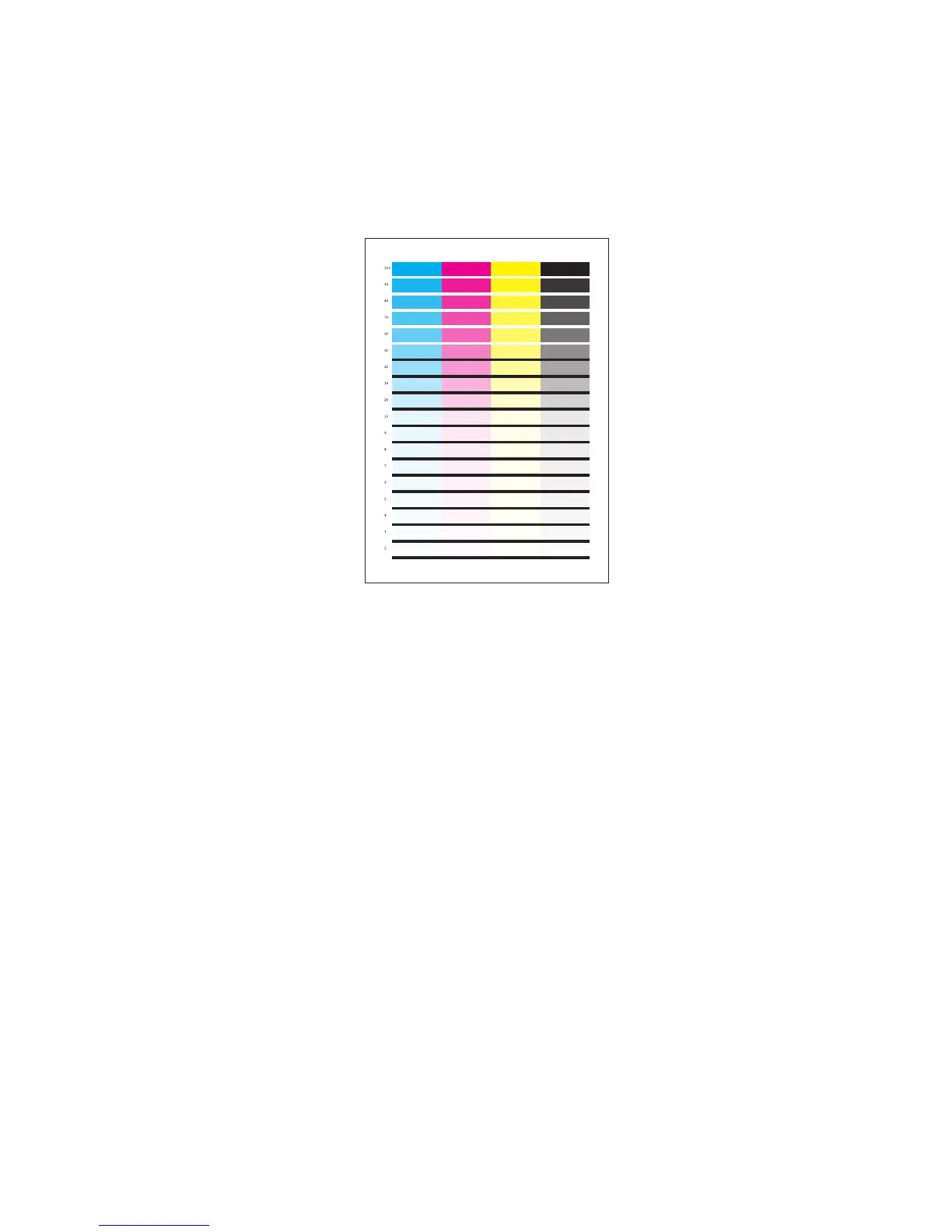

Compare the sample chart with the print.
Check result: NG (Check the printing process.) OK (Check the PWBA ESS-related.)
Leg_Sec02_010FA
