Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28

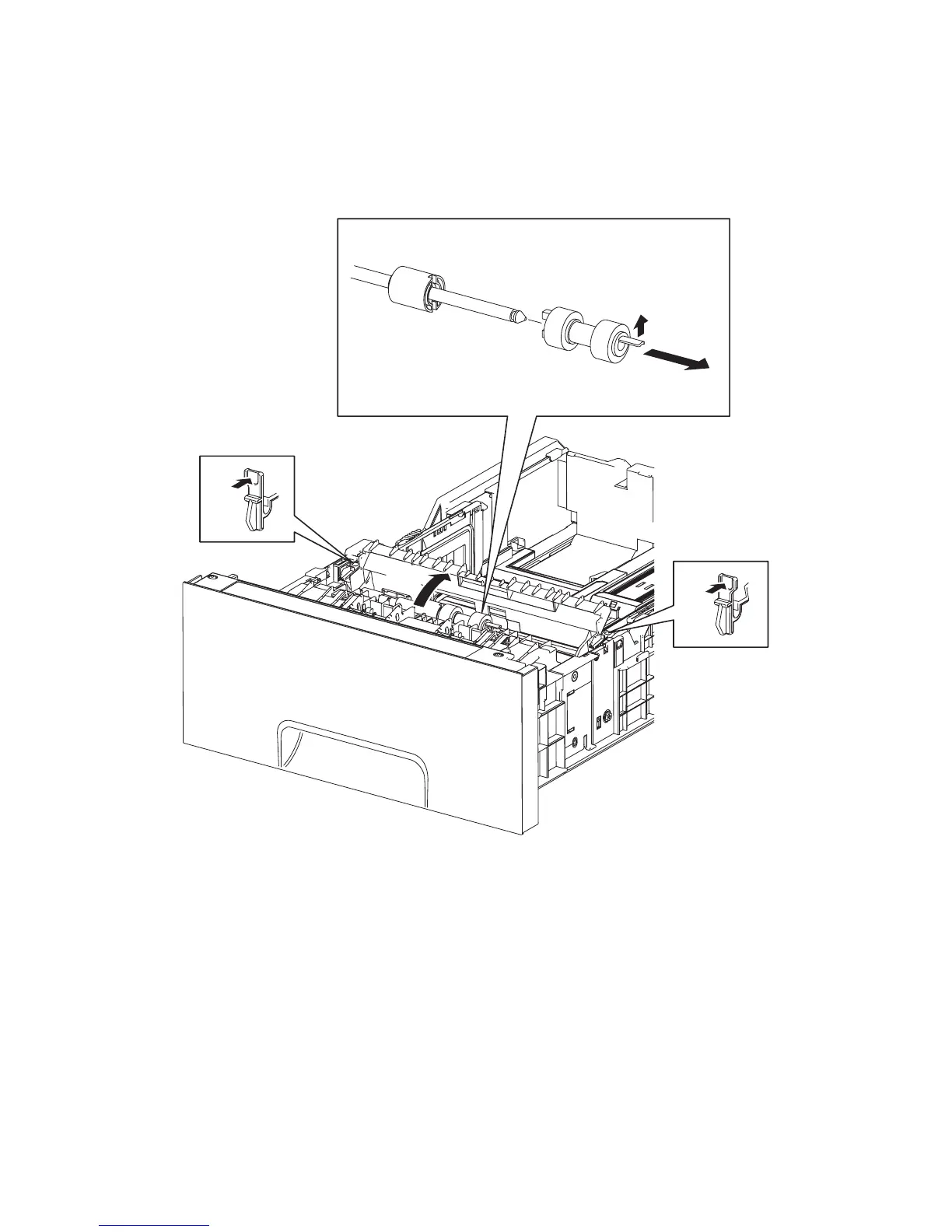

Removal 45 550 TRAY SEPARATOR ROLLER (PL12.5.17) (Same as the 550 TRAY
FEED ROLLER)
1) Remove the 550 SHEET PAPER TRAY (PL12.4.1) from the 550 SHEET FEEDER
ASSEMBLY (PL13.7.1).
2) Release the left and right hooks of the CVR RTD CST (PL12.5.13), and then open the CVR
RTD CST.
3) Release the hook of the 550 TRAY SEPARATOR ROLLER (PL12.5.17), and then remove the
550 TRAY SEPARATOR ROLLER from the SHAFT RETARD (PL12.5.15).
Kmy03061KA
2)-1
2)-1
3)-1
3)-2
2)-2
