Dell 3115CN - Fip-1; Fip-1. 42 Paper Jam

1‑139
Chapter 1 Troubleshooting
Version 1 2006.11.21

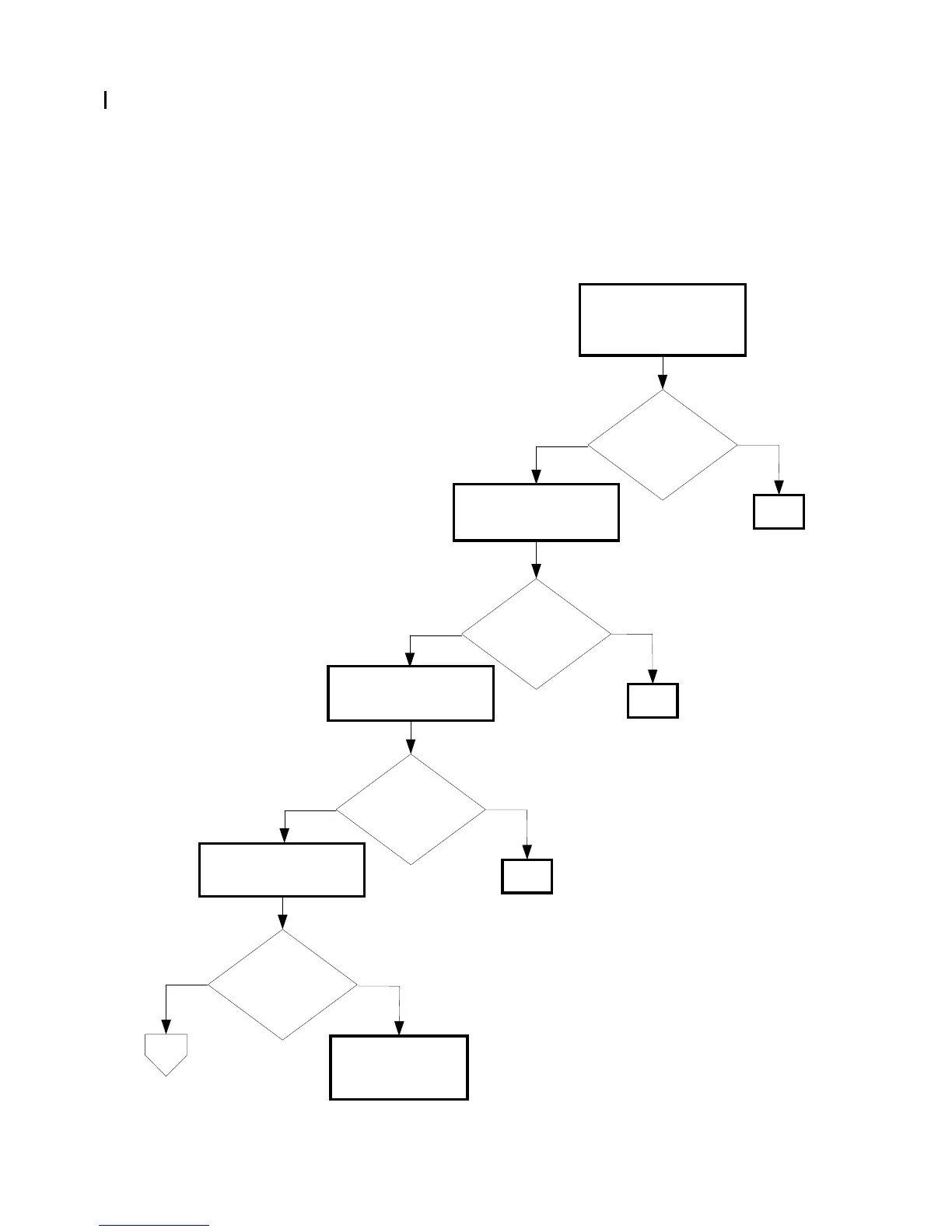

FIP-1. 42 Paper Jam 077-907
Possible causative parts:KIT FEEDER (PL3.2.99)
FUSER ASSY (PL6.1.10)
CHUTE DUP GATE (PL6.1.13)
DRIVE ASSY MAIN (PL8.1.2)
DRIVE ASSY PH (PL8.1.7)
PWBA MCU (PL9.1.20)
CHUTE ASSY DUP (PL11.1.1)
Checking the FUSER
ASSY installation
Reseat the FUSER ASSY.
Checking the shape and
installation of the Duplex
Gate
A
No
Yes
Does error still occur
when printing?
END
No
Yes
Checking the Duplex ASSY
installation
Reseat the Duplex ASSY.
No
Yes
Does error still occur
when printing?
END
Reseat or replace the
CHUTE DUP GATE.
(Removal 7/
Replacement 39)
Checking the Front Cover
latching
Open and close the Front
Cover, check the latching.
No
Yes
Does the error still
occur when printing?
END
Are shape and the
installation of the
Duplex Gate normal?
